1. はじめに
The TAKSTAR PRO 82 are professional reference and monitor headphones designed for high-fidelity audio reproduction. They feature a high-quality driver unit and a polymer-coated diaphragm, delivering clear sound with excellent resolving power. These headphones are suitable for various applications including recording monitoring, music appreciation, and general listening. The unique three-stage bass adjustment function allows users to customize the sound profile to match different music styles and preferences.

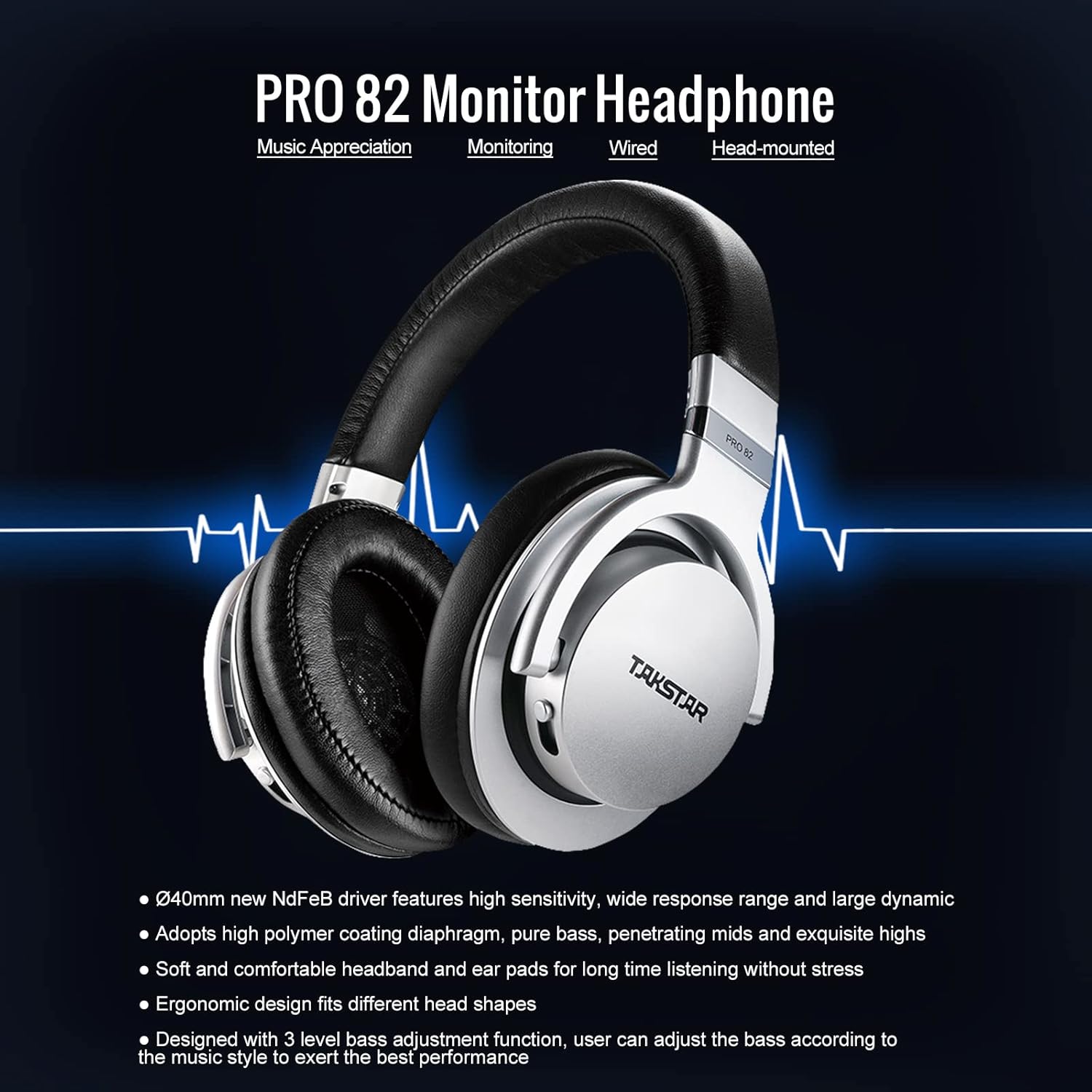

Image 1.1: TAKSTAR PRO 82 On-Ear Monitor Headphones (Silver and Black versions).
2. 主な特徴
- High-Performance Driver: Equipped with a Ø40mm NdFeB driver for high sensitivity, wide frequency response, and dynamic sound characteristics.
- Advanced Diaphragm: Utilizes a polymer-coated diaphragm for pure bass, penetrating midrange, and refined treble.
- Three-Level Bass Adjustment: Allows users to adjust bass output according to music style for an optimized listening experience.
- 人間工学に基づいたデザイン: Features soft and comfortable ear cushions and an adjustable headband for extended wear without discomfort.
- 耐久性のある構造: Designed for reliability and long-term use in various environments.
- 幅広い互換性: Compatible with a broad range of audio devices including smartphones, tablets, laptops, and professional audio equipment.
Image 2.1: Key features of the PRO 82 Monitor Headphone.
3. パッケージ内容
パッケージを注意深くチェックし、すべてのアイテムが揃っていて良好な状態であることを確認してください。
- PRO82 Monitor Headphone (1 pc)
- Portable Muslin Bag (1 pc)
- Connecting Cable (1 pc)
- Aluminum Alloy Case (1 pc)
- ユーザーマニュアル(1冊)
- Certificate of Quality (1 pc)
Image 3.1: Product Content - What's included in the box.
4. セットアップ
4.1 ケーブルの接続
- Locate the audio input jack on the left earcup of the PRO 82 headphones.
- Insert the smaller end (2.5mm) of the provided connecting cable firmly into the headphone jack.
- Connect the larger end (3.5mm) of the cable to your audio source (e.g., smartphone, computer, audio interface). If your audio source requires a 6.35mm (1/4 inch) jack, use the included adapter.
4.2 快適さの調整
For optimal sound and comfort, adjust the headphones to fit your head properly.
- ヘッドバンドの調整: Gently slide the headband up or down on both sides until the earcups comfortably cover your ears and the headband rests securely on your head.
- イヤーカップスイベル: The earcups can swivel 90 degrees to adapt to different head shapes and for flat storage. Ensure they are positioned correctly over your ears for a good seal.
Image 4.1: Headband and earcup adjustments for comfortable fit.
5. 操作手順
5.1 Bass Adjustment Function
The PRO 82 headphones feature a unique three-level bass adjustment switch located on the left earcup. This allows you to tailor the low-frequency response to your preference or the specific audio content.
Image 5.1: Three-stage bass regulation function switch.
- BASS1 (Gear 1): Standard low frequency (20-200Hz) sound pressure. This is the neutral setting, ideal for monitoring and critical listening.
- BASS2 (Gear 2): Low frequency (20-200Hz) increase by 3dB. Provides a moderate bass boost for a fuller sound.
- BASS3 (Gear 3): Low frequency (20-200Hz) increase by 6dB. Delivers a significant bass boost for genres that benefit from enhanced low-end.
To adjust, simply slide the switch to your desired bass level. Experiment with different settings to find what best suits your audio material.
5.2 ボリュームコントロール
The connecting cable may include an in-line remote with volume control. Use this to adjust the listening volume directly from the cable. Ensure your audio source's volume is also set to an appropriate level.
6. 互換性
The TAKSTAR PRO 82 headphones are designed for broad compatibility with various audio devices.
- 携帯電話（Android、iOS）
- タブレット
- ノートパソコン
- デスクトップコンピュータ
- MP3 / MP4プレーヤー
- Audio Mixers and Interfaces
- Ampライフファイア（AMP)
Image 6.1: Strong compatibility with various devices.
7. メンテナンス
Proper care and maintenance will extend the life and performance of your PRO 82 headphones.
- クリーニング： Use a soft, dry cloth to clean the exterior of the headphones. For ear cushions, gently wipe with a slightly damp 布で拭き、完全に自然乾燥させてからご使用ください。刺激の強い化学薬品や研磨剤入りの洗剤の使用は避けてください。
- ストレージ： When not in use, store the headphones in the provided portable muslin bag or aluminum alloy case to protect them from dust, moisture, and physical damage.
- ケーブルのお手入れ: Avoid sharp bends or excessive pulling on the connecting cable. Disconnect by gripping the plug, not the cable itself.
- 温度： ヘッドフォンを極端な温度（高温または低温）や高湿度にさらさないでください。
8。 トラブルシューティング
If you encounter issues with your PRO 82 headphones, please refer to the following common solutions:
- 音が出ない:
- オーディオ ケーブルがヘッドフォンとオーディオ ソースの両方にしっかりと接続されていることを確認します。
- Check the volume level on your audio source and the in-line remote (if applicable).
- ソースの問題を排除するために、別のオーディオ ソースまたはデバイスでヘッドフォンをテストします。
- Verify that the audio output settings on your device are correctly configured for the headphones.
- 歪んだ音:
- オーディオソースの音量を下げます。
- オーディオ ケーブルに損傷や接続の緩みがないか確認してください。
- Ensure the bass adjustment switch is not set to an excessively high level for the audio content.
- 不快なフィット感:
- Adjust the headband length on both sides until the earcups sit comfortably over your ears.
- Ensure the earcups are swiveled correctly to conform to your head shape.
If these steps do not resolve the issue, please contact TAKSTAR customer support for further assistance.
9. 仕様
| 特徴 | 仕様 |
|---|---|
| ブランド | タクスター |
| モデル番号 | プロ82 |
| ドライバータイプ | ダイナミックドライバ |
| ドライバーサイズ | 40ミリメートル |
| 周波数範囲 | 10 Hz - 20 kHz |
| 接続技術 | 有線 |
| ヘッドホンジャック | 3.5ミリジャック |
| 耳の位置 | 耳に |
| 騒音制御 | アクティブノイズキャンセリング |
| アイテム重量 | 1キログラム |
| キャリングケースの素材 | アルミニウム |
| Bass Adjustment Levels | 3 |
10. 保証とサポート
For warranty information and customer support, please refer to the warranty card included in your product package or visit the official TAKSTAR webサイトでご確認ください。保証請求の際は購入証明として領収書を保管してください。
メーカー: タクスター
