Relaxdays Black Hose Cart Instruction Manual

導入

This manual provides detailed instructions for the assembly, operation, and maintenance of your Relaxdays Black Hose Cart. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

Image: The Relaxdays Black Hose Cart, shown without a hose, highlighting its sturdy metal frame and two large wheels.

製品の特徴

• 手巻き： Equipped with a hand crank for easy manual winding of garden hoses up to 80 meters (5/8") or 50 meters (3/4").
• 多用途コネクタ: Includes 1/2” and 3/4” adapters for direct connection of hose pipes to water taps.
• モバイルデザイン: Features two durable plastic wheels with treads for effortless transportation across your garden.
• Hose Protection: Designed to compactly store the hose, preventing kinks and extending its lifespan.
• 耐久性のある構造: Made from robust metal and plastic components, ensuring stability and long-term use.

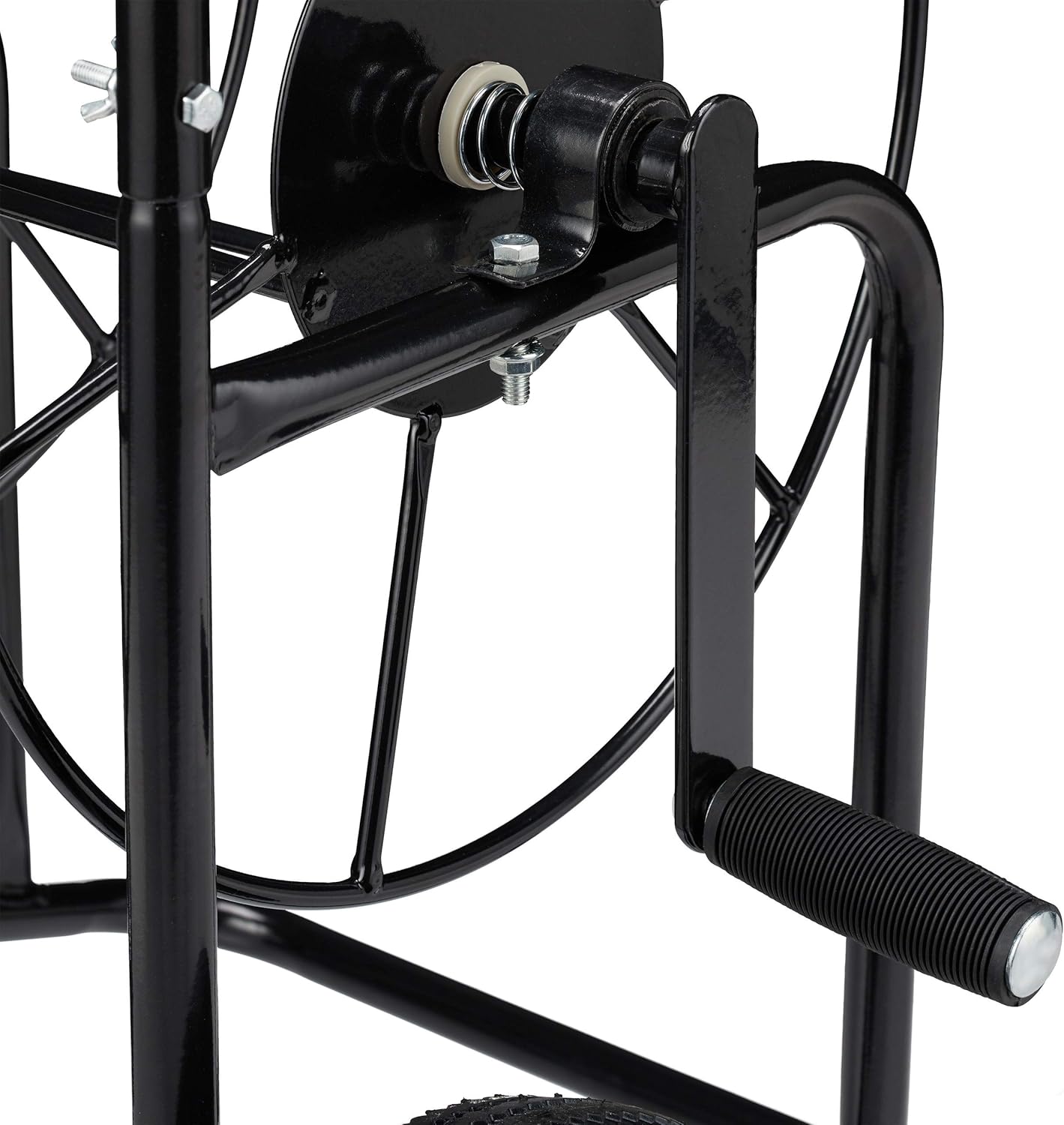

画像: 詳細な view of the manual hand crank mechanism, used for winding the hose onto the reel.

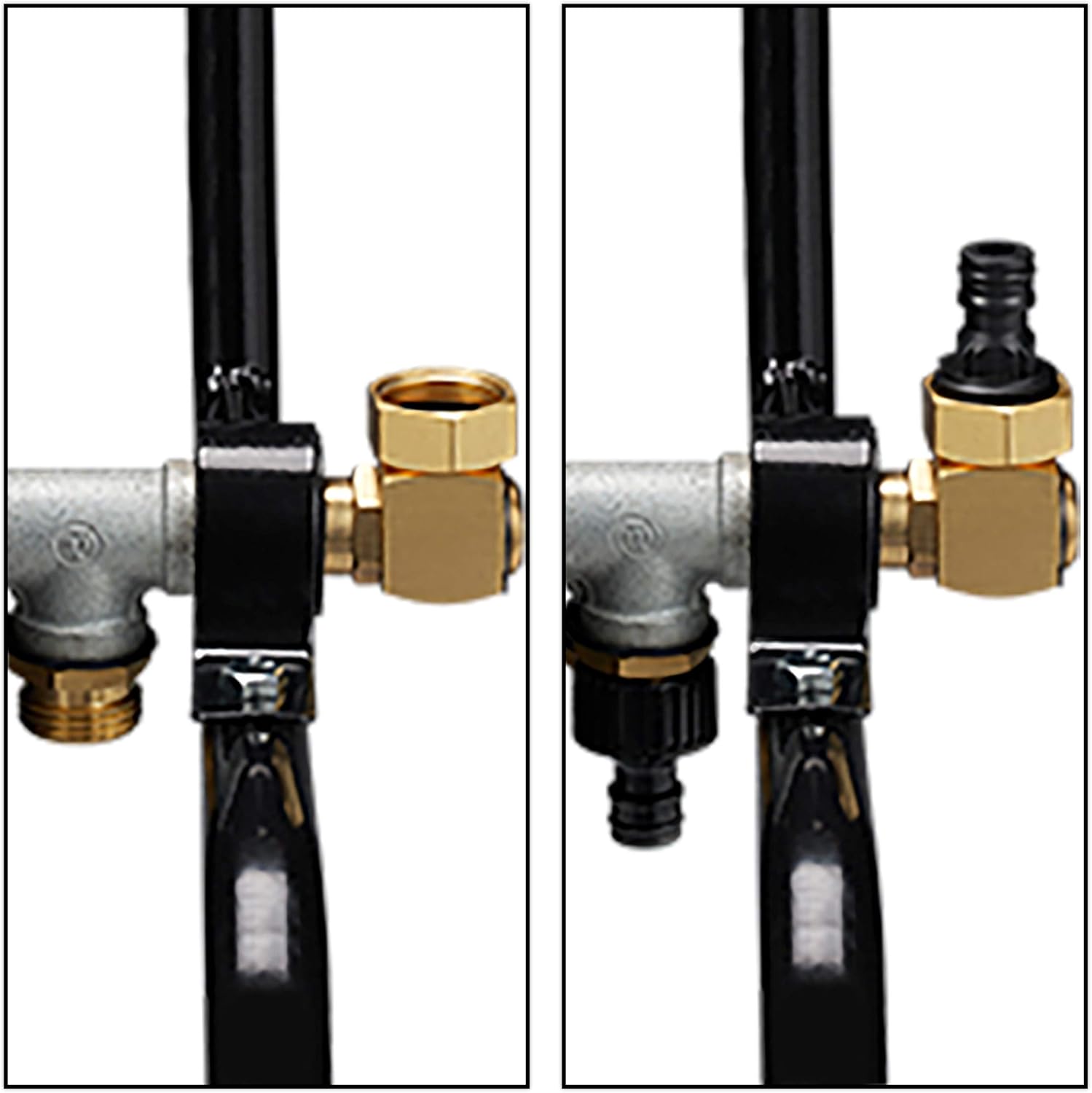

Image: A close-up showing the 1/2 inch and 3/4 inch hose connectors, demonstrating their compatibility with standard garden hoses.

パッケージ内容

Before beginning assembly, please ensure all parts are present and undamaged. Refer to the image below for typical packaging.

• 1x Hosepipe Cart (in pieces for assembly)
• 2x Adapter (1/2” and 3/4”)
• 組み立て手順
• Note: Hosepipe is not included.

Image: The product packaging box, indicating the item is shipped in parts for assembly.

Image: A close-up of the product label on the box, showing the Relaxdays brand, model number 10029551, and barcode 4052025295516.

セットアップ手順

Follow these steps to assemble your hose cart. It is recommended to have basic tools available, such as a wrench or pliers, though specific tools may vary based on the included instructions.

1. コンポーネントを解凍します: すべての部品をパッケージから慎重に取り出し、清潔で平らな面に広げます。
2. フレームを組み立てる: Connect the main frame components according to the diagrams in the included assembly instructions. Ensure all bolts and screws are securely tightened.
3. ホイールを取り付ける: Securely attach the two plastic wheels to the axle of the cart. Verify that the wheels spin freely.
4. Install Hose Reel: Mount the hose reel drum onto the frame, ensuring the winding mechanism is correctly aligned and can rotate smoothly.
5. クランクハンドルを取り付ける: Fasten the hand crank to the winding mechanism.
6. アダプタを接続する: Attach the appropriate 1/2” or 3/4” adapter to the hose connection point on the reel, depending on your hose size.
7. Load Hose (Optional): If you have your hose ready, you can now begin winding it onto the reel.

画像: クローズアップ view of one of the durable plastic wheels with treads, essential for mobility.

操作手順

Using your Relaxdays Hose Cart is straightforward. Follow these steps for efficient watering and hose storage.

1. Connect Hose to Reel: If not already done, connect one end of your garden hose to the internal connector on the hose reel.
2. 水源に接続: Attach the other end of your garden hose to a water tap using the appropriate adapter (1/2” or 3/4”).
3. Unwind Hose: Pull the hose from the reel to the desired watering location. The cart can be easily pushed or pulled thanks to its wheels.
4. 水やり: Turn on the water supply and use your hose as normal.
5. Rewind Hose: After use, turn off the water supply. Begin winding the hose back onto the reel using the hand crank. Ensure the hose layers evenly to prevent tangles and kinks.
6. ストレージ： Once the hose is fully wound, the cart can be stored upright against a wall or in a shed.

Image: The hose cart positioned in a garden while a person waters plants, demonstrating its portability and ease of use.

Image: The hose cart stored vertically against a wooden wall, showcasinコンパクトな収納力。

メンテナンス

• クリーニング： Wipe down the metal and plastic surfaces with a damp 定期的に布で汚れやゴミを拭き取ってください。研磨剤入りの洗剤は使用しないでください。
• 潤滑: Occasionally apply a small amount of lubricant to the moving parts, such as the axle and crank mechanism, to ensure smooth operation.
• 接続を確認してください: Periodically inspect all hose connections and adapters for leaks or wear. Replace worn parts as necessary.
• 冬の保管： In colder climates, drain all water from the hose and reel before storing the cart indoors during winter months to prevent freezing damage.
• ホイール検査: Check the wheels for any damage or excessive wear. Ensure they rotate freely.

トラブルシューティング

仕様

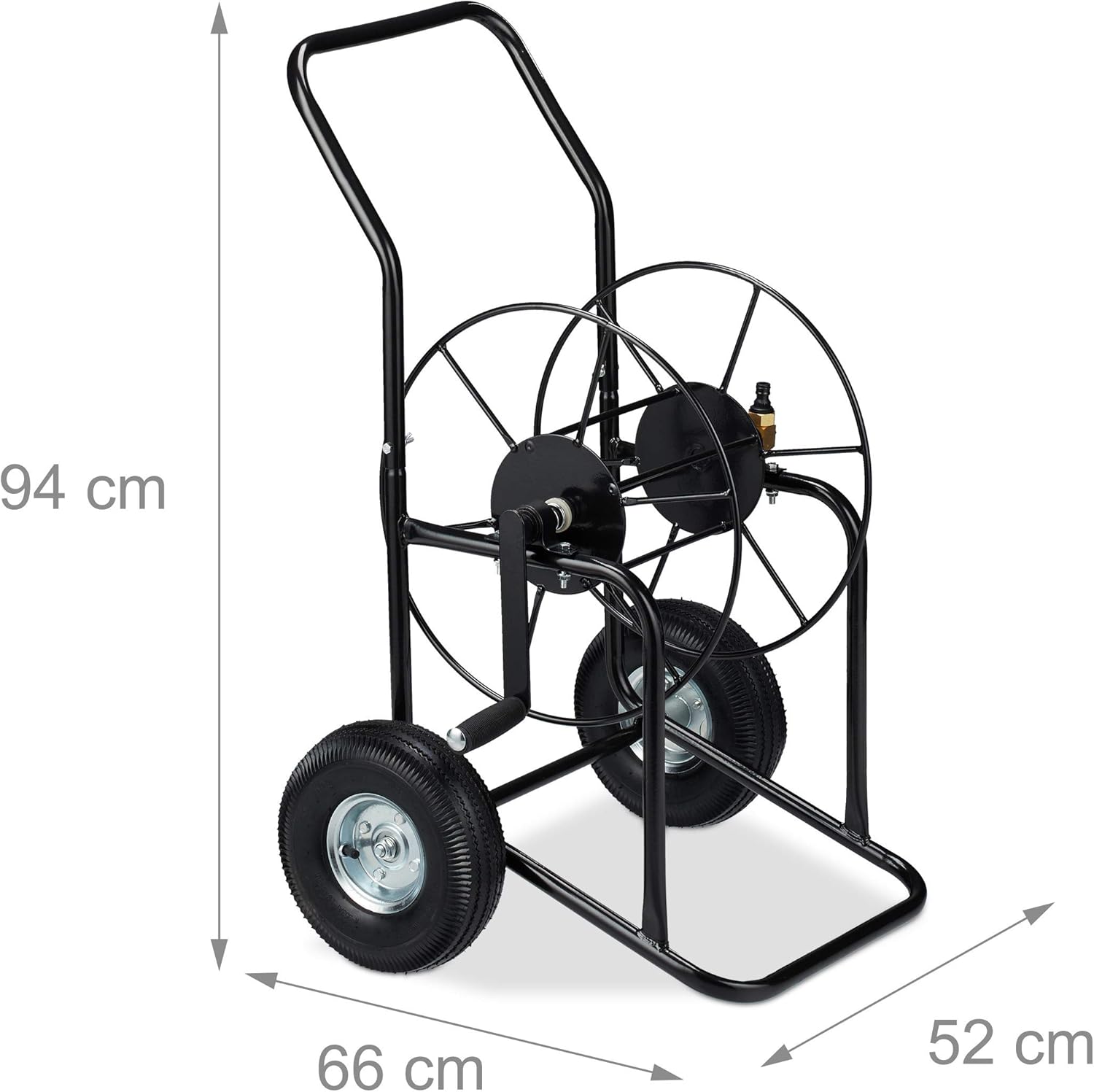

Image: A diagram illustrating the key dimensions of the hose cart: 94 cm height, 66 cm width, and 52 cm depth.

保証とサポート

For warranty information, technical support, or to inquire about replacement parts, please contact Relaxdays customer service directly. Refer to the contact information provided with your product packaging or visit the official Relaxdays webサイト。

メーカー: リラックスデイズ

Webサイト： リラックスデイズ （元amp（リンクは変更される場合があります）
