ORICO RH4CS

ORICO 4-Port USB 3.0 Cylinder Hub Instruction Manual

Model: RH4CS

導入

This manual provides detailed instructions for the installation, operation, and maintenance of your ORICO 4-Port USB 3.0 Cylinder Hub (Model RH4CS). Please read this manual thoroughly before using the product to ensure proper function and longevity.

製品終了view

The ORICO RH4CS is a versatile USB hub designed to expand your computer's connectivity with four SuperSpeed USB 3.0 ports and two dedicated charging ports. Its compact, cylinder design is both functional and aesthetically pleasing, inspired by modern desktop aesthetics.

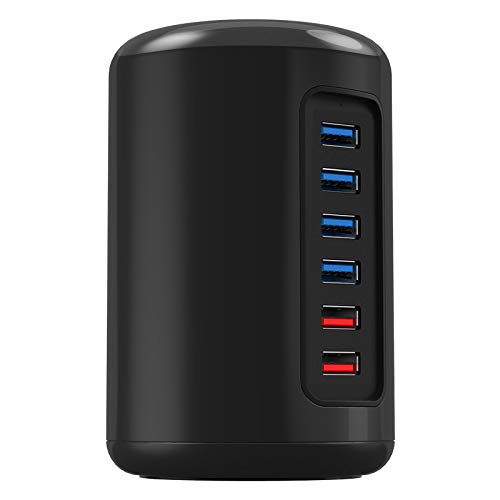

ORICO 4-Port USB 3.0 Cylinder Hub, front view showing 4 blue USB 3.0 ports and 2 red charging ports.

図1: フロント view of the ORICO 4-Port USB 3.0 Cylinder Hub, highlighting its six ports.

主な特徴:

  • 4 SuperSpeed USB 3.0 Ports: Provides data transfer rates up to 5 Gbps, enabling quick synchronization of large files.
  • 2 Dedicated Charging Ports: Delivers 1.0 - 2.4A current for efficient charging of mobile phones, tablets, and other USB-powered devices.
  • Independent Power Adapter: Includes a 12V2.5A power adapter to ensure stable operation even under full load, protecting connected devices.
  • ドライバー不要のインストール: Compatible with Windows XP / 7 / 8 / Vista, Linux, Mac OS, and other major operating systems without requiring additional driver installation.
  • コンパクトで耐久性のあるデザイン: Features a high-strength material construction with a high-gloss lacquer finish.

箱の中身:

  • ORICO 4-Port USB 3.0 Cylinder Hub (RH4CS)
  • 1m USB 3.0 Data Cable
  • 12V2.5A電源アダプター
  • ユーザーマニュアル

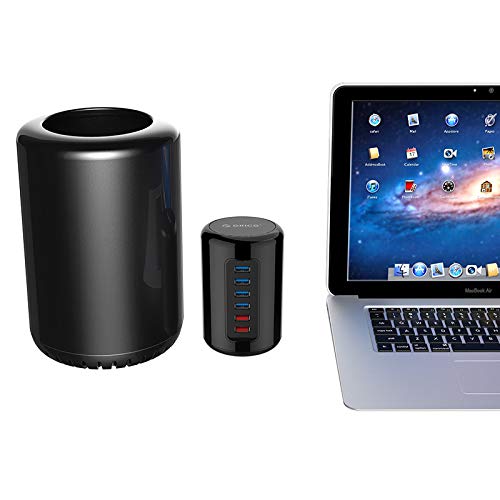

ORICO 4-Port USB 3.0 Cylinder Hub next to a larger Mac Pro cylinder and a MacBook Air, illustrating its compact size and design inspiration.

図2: The ORICO RH4CS hub demonstrating its compact size and design alongside a Mac Pro and MacBook Air.

セットアップ手順

  1. 電源アダプタを接続します: Insert the DC plug of the 12V2.5A power adapter into the power input port on the back of the ORICO RH4CS hub. Plug the power adapter into a standard wall outlet.
  2. コンピュータに接続します: Use the provided 1m USB 3.0 data cable. Connect one end to the USB 3.0 input port on the ORICO RH4CS hub and the other end to an available USB 3.0 port on your computer.
  3. システム認識: Your operating system (Windows, Mac OS, Linux) should automatically detect and configure the hub. No additional drivers are typically required.

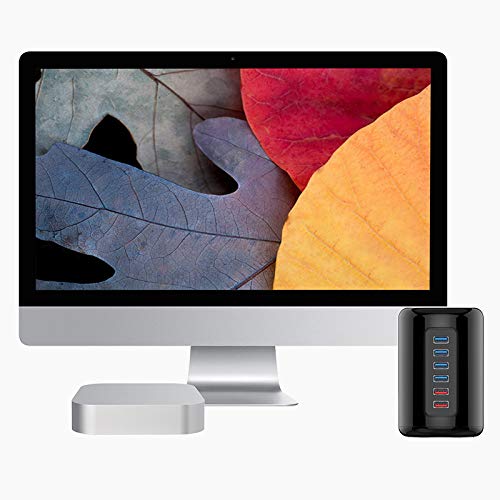

ORICO 4-Port USB 3.0 Cylinder Hub positioned next to an iMac and a Mac Mini, illustrating a typical desktop setup.

図3: The ORICO RH4CS hub integrated into a desktop environment with an iMac and Mac Mini, showing potential setup configurations.

操作手順

USB 3.0 データポートの使用:

Connect your USB devices such as external hard drives, USB flash drives, keyboards, mice, or other peripherals to the blue USB 3.0 ports on the hub. These ports support SuperSpeed data transfer up to 5 Gbps.

充電ポートの使用:

The two red ports are dedicated charging ports. Connect your smartphones, tablets, or other USB-chargeable devices to these ports for efficient charging. These ports provide a current range of 1.0A to 2.4A.

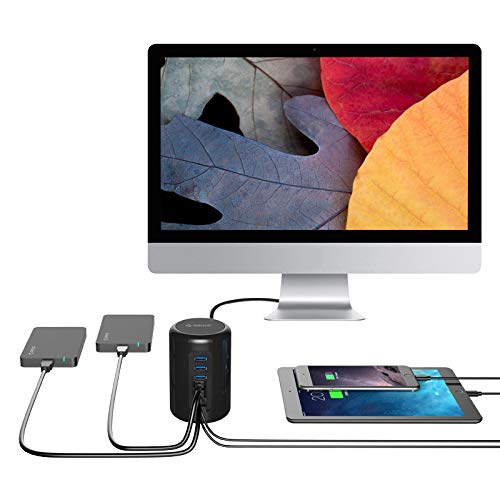

ORICO 4-Port USB 3.0 Cylinder Hub connected to a monitor, charging two tablets, and providing connectivity for other devices.

図4: The ORICO RH4CS hub in active use, demonstrating its data and charging capabilities with multiple devices connected.

メンテナンス

  • クリーニング： Use a soft, dry cloth to clean the exterior of the hub. Avoid using liquid cleaners or abrasive materials, as they may damage the finish.
  • ストレージ： When not in use for extended periods, disconnect the hub from power and your computer. Store it in a cool, dry place away from direct sunlight and extreme temperatures.
  • 取り扱い： Avoid dropping the device or subjecting it to strong impacts. Do not attempt to disassemble the hub, as this will void any warranty.

トラブルシューティング

問題考えられる原因解決
デバイスがコンピューターに認識されません。
  • USBケーブルの接続が緩んでいます。
  • ハブの電源がオンになっていません。
  • コンピュータの USB ポートに障害があります。
  • Ensure the USB 3.0 data cable is securely connected to both the hub and the computer.
  • Verify the power adapter is connected and plugged into a working outlet.
  • ハブをコンピューターの別のUSBポートに接続してみてください。
データ転送速度が遅い。
  • Device connected to a USB 2.0 port on the computer.
  • Device itself is USB 2.0.
  • Ensure the hub is connected to a USB 3.0 port on your computer (often blue).
  • Confirm that the connected device supports USB 3.0 for optimal speeds.
デバイスが充電されない、または充電速度が遅い。
  • Device connected to a data port instead of a charging port.
  • Power adapter not connected or insufficient power.
  • Ensure devices are connected to the dedicated red charging ports.
  • Verify the 12V2.5A power adapter is correctly connected and receiving power.

仕様

製品コードORICO RH4CS
USBポート4 SuperSpeed USB 3.0 Ports
充電ポート2 Super Charger Ports (1.0 - 2.4A)
コントローラVia-Labs VL812
電源12V2.5A電源アダプター
データケーブル1m USB 3.0 Cord
ドライバドライバー不要
サポートされているシステムWindows XP, Vista, 7, 8, 8.1, 10, Mac OS, and Linux
寸法115 x 76 mm (Height x Diameter)
アイテム重量320グラム
モデル番号RH4CS-V1-EU-BK-BP

保証とサポート

For warranty information, please refer to the documentation included with your product or contact ORICO customer support. The manufacturer's contact information is provided below:

メーカー: 株式会社オリコテクノロジーズ

住所： 903-904, 14A, Zhonghaixin Innovation Industrial Park, 6th Gan Lee Road, Buji, Longgang District, Shenzhen, China

For further assistance, please visit the official ORICO webサイトまたは顧客サービス部門に連絡してください。

© 2023 オリコテクノロジーズ株式会社 All rights reserved.
