Keenso Motorcycle Anti-lock Braking System (ABS) Auxiliary Unit

1. はじめに

This Keenso Motorcycle Anti-lock Braking System (ABS) Auxiliary Unit is a universal component designed to enhance the safety and control of your motorcycle or electric vehicle during braking. Constructed from high-quality aluminum alloy, it is engineered for durability and rust resistance. The system works to prevent wheel lock-up, reduce skidding, and shorten braking distances, thereby improving overall braking performance and reducing tire wear.

This manual provides essential information regarding the installation, operation, and maintenance of your ABS auxiliary unit. Please read it thoroughly before installation and use.

2.製品オーバーview

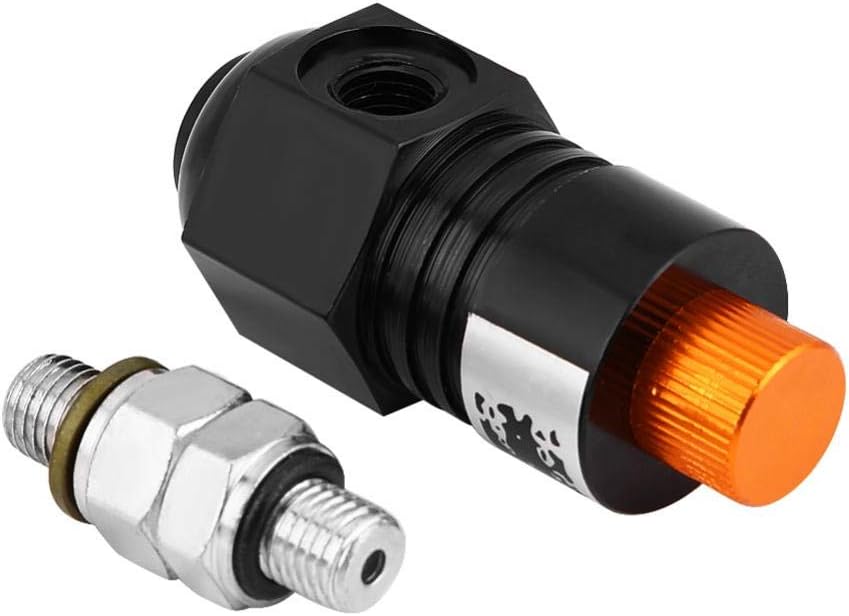

Figure 2.1: Main components of the Keenso ABS Auxiliary Unit, showing the main black unit with an orange cap and a separate silver screw adapter.

図 2.2: XNUMX つ views of the Keenso ABS Auxiliary Unit, highlighting its compact design and connection points.

The Keenso ABS Auxiliary Unit consists of the main ABS module and a connecting screw adapter. It is designed for easy integration into existing brake systems.

3.インストールガイド

重要： Installation should ideally be performed by a qualified mechanic. Incorrect installation can lead to brake system failure and serious injury.

1. 互換性の確認: 購入前asing and installing, measure the specifications of the pipe screws on your original vehicle's brake system. The ABS pump connection screw diameter is 10mm×1.25 with orthodontic (coarse) threads. Ensure your vehicle's brake system is compatible.
2. インストールの準備： Ensure the motorcycle is stable and the brake system is depressurized. Gather necessary tools.
3. 直接インストール: If compatible, the ABS unit can be screwed directly onto the brake caliper bracket.
4. Alternative Installation (if needed): If direct installation is not possible, you may need to use a 10 x 1.25 mm threaded drill to modify the brake caliper bracket to accommodate the ABS unit.
5. 安全な接続: 漏れを防ぐために、すべての接続がしっかりと固定されていることを確認してください。
6. ブリードブレーキシステム: After installation, it is crucial to properly bleed the brake system to remove any air that may have entered, ensuring proper brake function.
7. テストブレーキ: Before riding, perform static and low-speed dynamic tests of the brakes in a safe area to confirm proper operation.

Figure 3.1: Illustrative image showing the ABS auxiliary unit in a potential installation setting, highlighting its connection point.

図3.2: 角度付き view of the ABS unit, showing the threaded connection point for installation.

4. 運営原則

The Keenso ABS Auxiliary Unit is designed to improve braking safety by preventing the wheels from locking up during sudden or hard braking. This system offers several key benefits:

• Reduced Skidding: In emergency braking situations or on slippery surfaces, the ABS unit helps prevent the wheels from locking, significantly reducing the risk of skidding and loss of control.
• Improved Motorcycle Control: With ABS, the rider maintains better steering control during emergency braking, allowing for timely adjustments to avoid obstacles or hazards.
• Reduced Tire Wear: By preventing wheel lock-up, the ABS system minimizes the severe, irreparable damage to tires that can occur during emergency braking, thereby extending tire life.
• Shortened Braking Distance: The ABS system allows the wheel to continue rolling and gripping the road, maintaining optimal friction between the tire and the ground. This results in a more effective braking process and a shorter stopping distance compared to conventional braking systems in emergency situations.

After installation, you may notice that the brakes (both hand lever and foot pedal) feel softer. This is a normal characteristic of the ABS system, indicating its readiness to modulate braking force. In certain situations, the likelihood of wheel lock-up is significantly reduced.

5. メンテナンス

To ensure the longevity and optimal performance of your Keenso ABS Auxiliary Unit and your motorcycle's braking system, follow these general maintenance guidelines:

• 定期点検: Periodically inspect the ABS unit and its connections for any signs of damage, leaks, or corrosion. Ensure all bolts are securely tightened.
• ブレーキフルードのチェック: Regularly check your motorcycle's brake fluid level and condition. Replace brake fluid according to your motorcycle manufacturer's recommendations.
• 清潔さ: Keep the ABS unit and surrounding brake components clean from dirt, grime, and road debris.
• プロフェッショナルサービス: For any complex issues or routine brake system maintenance, it is highly recommended to consult a professional motorcycle mechanic.

6。 トラブルシューティング

While the Keenso ABS Auxiliary Unit is designed for reliable performance, if you encounter any issues with your braking system after installation, consider the following:

• Soft or Spongy Brakes: This could indicate air in the brake lines. Ensure the brake system has been properly bled after installation. If the issue persists, re-bleed the system or seek professional assistance.
• ブレーキフルードの漏れ: Immediately check all connections around the ABS unit and brake lines for any signs of leakage. Tighten loose connections or replace damaged components. Do not ride the motorcycle if there is a brake fluid leak.
• Unusual Noises During Braking: Investigate the source of the noise. It could be related to brake pads, rotors, or other brake components, not necessarily the ABS unit itself.

For any persistent or severe issues, it is strongly advised to consult a certified motorcycle mechanic. Do not attempt repairs if you are not confident in your abilities, as brake system malfunctions can lead to serious accidents.

7. 仕様

Figure 7.1: Detailed dimensions of the Keenso ABS Auxiliary Unit and its screw adapter.

8. 保証とサポート

Keenso is committed to professional manufacturing and guaranteed service. If you have any questions or encounter issues with this product, please contact Keenso customer support. Refer to your purchase documentation for specific warranty terms and contact information.

For further assistance, you may visit the official Keenso store on Amazon: Keenso Store.
