1. はじめに

Thank you for choosing the Karcher HDS 10/20-4M Pressure Washer. This professional-grade machine is designed for heavy-duty cleaning tasks, offering exceptional power and efficiency. To ensure safe and optimal operation, please read this manual thoroughly before using the appliance for the first time. Keep this manual for future reference.

2. 安全に関する注意事項

一般的な安全性：

• メンテナンスや清掃を行う前に必ず電源を切ってください。
• 絶対に水流を人、動物、電気機器に向けて噴射しないでください。
• Do not operate the machine if the power cord or other essential parts are damaged.
• Ensure the work area is well-ventilated, especially when operating the burner.
• 子供や関係者以外の人を機器から遠ざけてください。

個人用保護具（PPE）：

• Wear appropriate safety glasses or face shield.
• 保護手袋と滑り止め靴を使用してください。
• Hearing protection is recommended during extended operation.

電気安全:

• Connect the machine only to a properly grounded power outlet.
• Ensure the power supply matches the specifications on the machine's rating plate.
• Avoid using extension cords unless absolutely necessary, and ensure they are rated for outdoor use and the machine's power requirements.

Hot Water and Fuel Safety:

• The machine produces hot water. Be aware of hot surfaces and steam.
• Use only recommended fuel types. Refuel in a well-ventilated area away from ignition sources.
• 燃料タンクに燃料を入れすぎないでください。

3.コンポーネントオーバーview

Familiarize yourself with the main components of your Karcher HDS 10/20-4M pressure washer:

• 高圧ホース接続
• 給水口接続
• Detergent tank and dosing valve
• 燃料タンク
• Control panel (pressure/temperature adjustment, main switch)
• High-pressure gun and spray lance
• ノズル収納
• 車輪と運搬用ハンドル

図3.1: 前面 view of the Karcher HDS 10/20-4M Pressure Washer, showing its robust grey and black casing with the Karcher Professional logo.

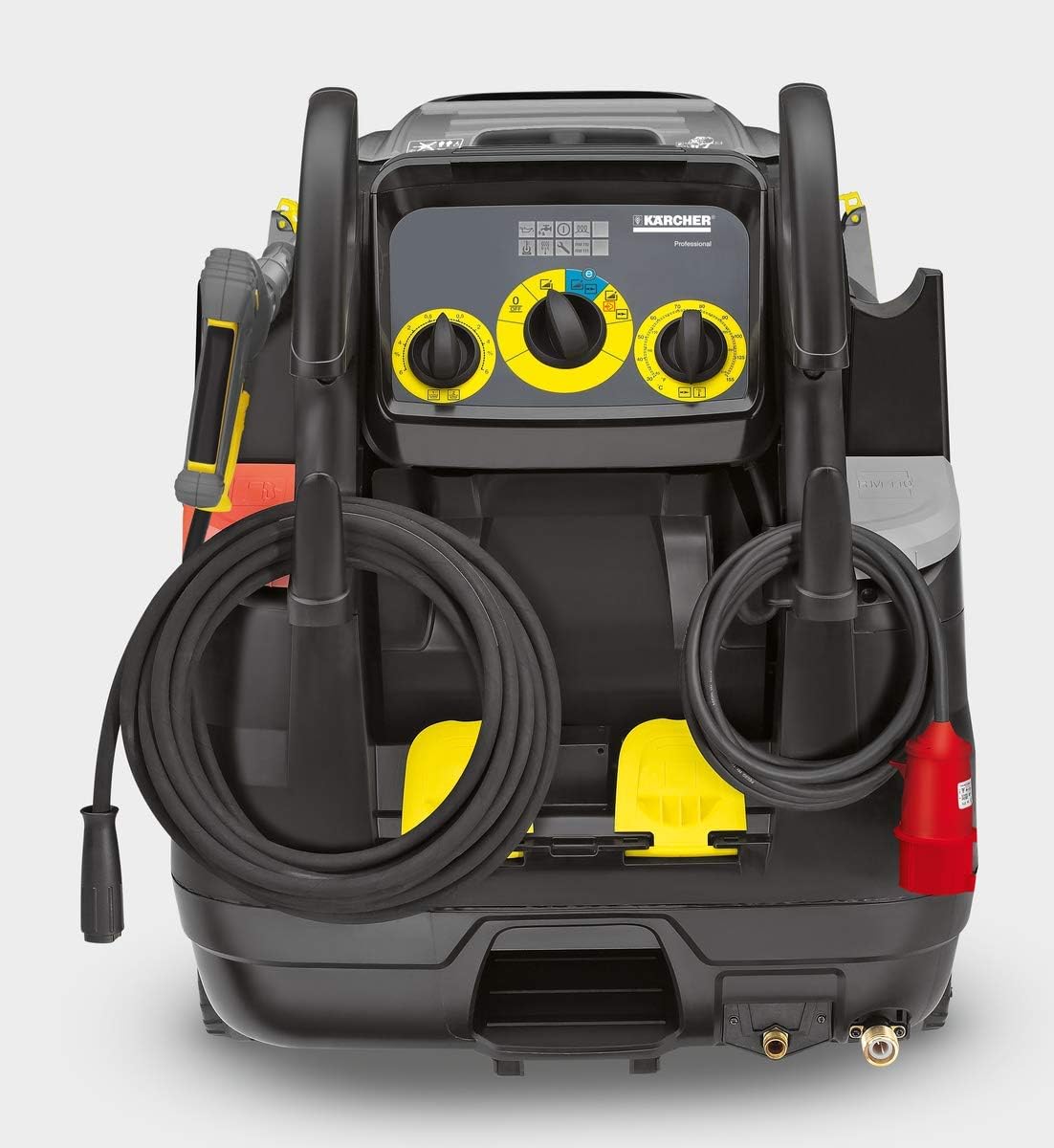

図3.2：背面 view of the Karcher HDS 10/20-4M, highlighting the control panel with yellow dials for pressure and temperature, and integrated storage for hoses and power cable.

4. セットアップ

1. 開梱: Carefully remove the pressure washer and all accessories from the packaging. Check for any damage during transit.
2. 組み立て：
   • Attach the high-pressure hose to the machine's outlet and the high-pressure gun. Ensure connections are secure.
   • スプレーランスを高圧ガンに接続します。
3. 給水接続:
   • Connect a water supply hose (not supplied) to the water inlet connection on the machine.
   • Ensure the water supply has sufficient flow and pressure (refer to specifications).
   • 水道の蛇口を全開にします。
4. 電源接続:
   • Plug the power cord into a suitable 3-phase, 420V, 50Hz grounded electrical outlet.
   • Verify that the power supply meets the machine's requirements.
5. Fueling (for hot water operation):
   • 燃料タンクのキャップを開けます。
   • Fill the tank with diesel fuel (or recommended alternative) up to the maximum fill line. Do not overfill.
   • 燃料タンクのキャップをしっかり閉めてください。
6. 洗剤（オプション）:
   • If using detergent, fill the detergent tank with Karcher-approved cleaning agent.
   • Adjust the detergent dosing valve as needed.

5. 操作手順

1. マシンの起動：
   • Ensure all connections (water, power, hose) are secure.
   • Turn the main switch to the desired operating mode (cold water, hot water, steam).
   • Press the trigger on the high-pressure gun to release air from the system until a steady water flow is achieved.
   • The pump will start automatically once the trigger is pressed.
2. Adjusting Pressure and Temperature:
   • Use the pressure regulator dial on the control panel to adjust the working pressure.
   • For hot water operation, use the temperature dial to select the desired water temperature. The burner will ignite automatically.
3. 洗剤の塗布:
   • Switch the machine to detergent mode (if available) or use a low-pressure nozzle.
   • Adjust the detergent dosing valve to control the amount of detergent mixed with the water.
   • After applying detergent, switch back to high-pressure mode to rinse the surface.
4. シャットダウン：
   • 高圧ガンのトリガーを離します。
   • メインスイッチを「OFF」の位置に回します。
   • 水道の蛇口を閉めてください。
   • Press the trigger on the high-pressure gun again to release any residual pressure in the system.
   • 電源を外します。
5. ストレージ：
   • Drain all water from the machine and hoses, especially in freezing temperatures, to prevent damage.
   • Store the machine in a dry, frost-free location.

Figure 5.1: A man using the Karcher HDS 10/20-4M to clean the side of a large truck, demonstrating its powerful cleaning capability for commercial vehicles.

Figure 5.2: A worker cleaning a barn or stable area with the Karcher HDS 10/20-4M, showcasing its effectiveness in demanding agricultural or industrial environments.

6. メンテナンス

定期的なメンテナンスにより、高圧洗浄機の寿命が長くなり、最適なパフォーマンスが確保されます。

• 使用後：
  • 広告で機械の外側を掃除するamp 布。
  • Rinse the high-pressure hose and gun.
  • 給水フィルターにゴミがないか確認し、必要に応じて清掃します。
• Monthly / Every 50 Operating Hours:
  • Inspect the high-pressure nozzle for wear or blockage. Clean or replace as needed.
  • Check oil level in the pump (if applicable) and top up if low. Refer to the oil type specified in the technical data.
  • すべてのホースと接続部に漏れや損傷がないか検査してください。
• Annually / Every 200 Operating Hours:
  • Change the pump oil.
  • 燃料フィルターを清掃します。
  • Descaling the heating coil (if hard water is used regularly). This may require professional service.
  • Have the burner checked and serviced by a qualified technician.

注記： For complex maintenance tasks, it is recommended to contact an authorized Karcher service center.

7。 トラブルシューティング

このセクションでは、発生する可能性のある一般的な問題に対する解決策を示します。

8. 仕様

Detailed technical specifications for the Karcher HDS 10/20-4M Pressure Washer:

9. 保証とサポート

Karcher products are manufactured to the highest quality standards and undergo rigorous quality control. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including warranty period and coverage details.

For technical assistance, spare parts, or warranty claims, please contact Karcher customer support or your authorized Karcher dealer. Ensure you have your product model number (HDS 10/20-4M) and serial number ready when contacting support.

You can find contact information for Karcher support on their official webサイトまたはマシンに付属のドキュメントを参照してください。
