Coleman Trailhead Cot Instruction Manual

1.製品オーバーview

The Coleman Trailhead Cot is a portable folding cot designed for outdoor use, inspired by military-style cots. It provides a comfortable resting place and features a durable steel X-frame construction. The cot includes multiple side pockets for convenient gear storage and is designed for easy transport.

Image 1.1: The Coleman Trailhead Cot in its fully assembled state, featuring camouflage fabric and orange accents. Note the integrated side pockets.

主な特徴:

• Military-style camping cot with camouflage motif.
• Integrated side pockets for convenient storage of personal items.
• Durable steel X-frame construction supports up to 300 pounds.
• Foldable design for easy transport and compact storage.
• Measures 75 x 35 x 17 inches when unfolded, accommodating most individuals up to 6 feet 2 inches tall.

2. 重要な安全情報

Please read and understand all safety warnings before assembling or using the cot. Failure to follow these instructions may result in injury or damage to the product.

• 重量制限： Do not exceed the maximum weight capacity of 300 pounds (136 kg). Overloading the cot can cause structural failure and injury.
• 組み立て上の注意: Be cautious of sharp edges or pinch points on the steel frame during assembly and disassembly. Keep fingers clear of moving parts.
• 安定した表面： Always set up the cot on a flat, stable, and level surface to prevent tipping.
• 子供とペット: Keep children and pets away from the cot during assembly and ensure they do not play unsupervised on or around the cot.
• 検査： Before each use, inspect the cot for any signs of damage, wear, or loose components. Do not use if damaged.

3. セットアップ手順

Follow these steps to correctly assemble your Coleman Trailhead Cot. Assembly can typically be completed by one person.

1. コンポーネントを解凍します: Remove all components from the carry bag. You should have the main cot frame assembly and two end support bars.


Image 3.1: The cot components laid out, showing the folded main frame, two end support bars, and the storage bag.

2. Unfold Main Frame: Lay the folded cot frame on a flat surface. Unfold the two arms from the middle towards each end, swinging them approximately 180 degrees until they are fully extended.
3. Spread Cot: Gently spread apart the two sides of the sleeping surface. This action will cause the legs to extend into their "X" shape, forming the cot's base. Ensure all legs are fully extended and locked into position.
4. Install End Support Bars: This step may require some leverage due to the taut fabric.
   • Locate the sleeves at each end of the cot fabric.
   • Insert one of the metal end support bars into a sleeve.
   • To secure the bar, stand the cot on its end. Use your foot to apply leverage against the lower part of the cot leg while pulling the end support bar into its final position. This will snug up the sleeping surface and prevent the cot from folding.
   • Repeat for the other end support bar.


Image 3.2: Detail of the cot's corner, illustrating the taut fabric and the robust steel frame connection.



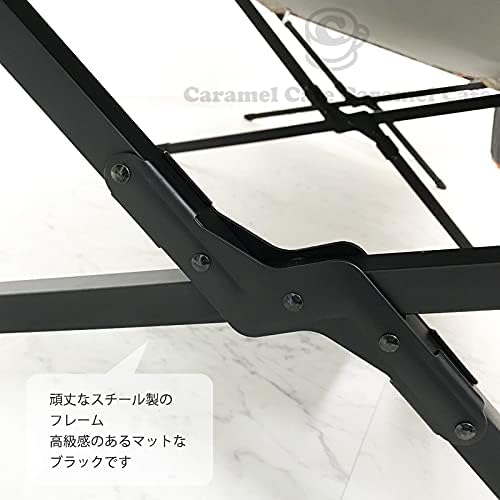

画像3.3: 詳細な view of the steel X-frame joint, demonstrating the cot's sturdy construction.

5. 安定性の検証: Once both end bars are in place, ensure the cot is stable and all parts are securely connected before use.

4. 操作手順

Using your Coleman Trailhead Cot is straightforward once assembled.

• 配置: Position the cot on a flat, level surface. Avoid uneven ground or slopes to ensure stability.
• 寝心地： The cot provides a firm and elevated sleeping surface. For added comfort, you may place a sleeping pad or air mattress on top.
• サイドポケット: Utilize the integrated side pockets for storing small personal items such as a phone, glasses, water bottle, or flashlight.


Image 4.1: Detail of the cot's mesh side pockets, ideal for keeping essentials within reach.



Image 4.2: A closer look at the camouflage side pockets, featuring flap closures for secure storage of items.

• 分解： To disassemble, reverse the setup steps. Remove the end support bars first, then fold the sleeping surface and the main frame. Store all components in the provided carry bag.

5. メンテナンス

Proper maintenance will extend the life of your Coleman Trailhead Cot.

• クリーニング： Wipe the cot fabric and frame with a dry cloth to remove dirt and debris. For stubborn stains, use a damp cloth with mild soap and water, then allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• ストレージ： Ensure the cot is completely dry before folding and storing it in its carry bag. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• 検査： Periodically check all frame connections, fabric seams, and stitching for any signs of wear or damage. Address any issues promptly to prevent further deterioration.

6。 トラブルシューティング

This section addresses common issues you might encounter with your cot.

Difficulty installing end support bars:

The fabric is designed to be taut for a firm sleeping surface. If you find it difficult to insert the end bars, try standing the cot on its end and using your foot to leverage against the lower part of the leg while pulling the end support bar into position. This technique helps stretch the fabric slightly, making insertion easier.

Cot feels unstable or wobbly:

Ensure all X-frame legs are fully extended and locked into their open position. Verify that the cot is placed on a flat, level surface. Re-check that both end support bars are fully inserted and secured.

Fabric tearing or excessive wear:

Ensure the cot is not overloaded beyond its 300-pound weight limit. Always assemble the cot correctly, ensuring the end bars are properly seated to distribute tension evenly. Avoid sharp objects coming into contact with the fabric. If significant tearing occurs, discontinue use and contact customer support.

Difficulty fitting cot back into carry bag:

Ensure the cot is folded as compactly as possible. The carry bag is designed for a snug fit. Try folding the cot precisely according to its original packed configuration. Sometimes, rotating the cot slightly within the bag can help it slide in more easily.

7. 仕様

8. 保証とサポート

For specific warranty details and customer support, please refer to the manufacturer's official website or contact Coleman directly.

• メーカー保証: Please see the manufacturer's official documentation or website for current warranty information.
• カスタマーサポート: For assistance with product inquiries, parts, or warranty claims, visit the official Coleman webサイトまたは顧客サービス部門に連絡してください。
• オンラインリソース: Additional product information and support may be available on the Coleman Brand Store.
