1.製品オーバーview
The O.N LED Anti-Blackout Emergency Light is a 2W, 160 lumen recessed lamp designed for indoor use. It provides 6500K cool white illumination and features an integrated lithium-ion battery for emergency operation during power outages。このlamp is suitable for installation in a standard 503 support box and connects directly to a 230V AC power supply.

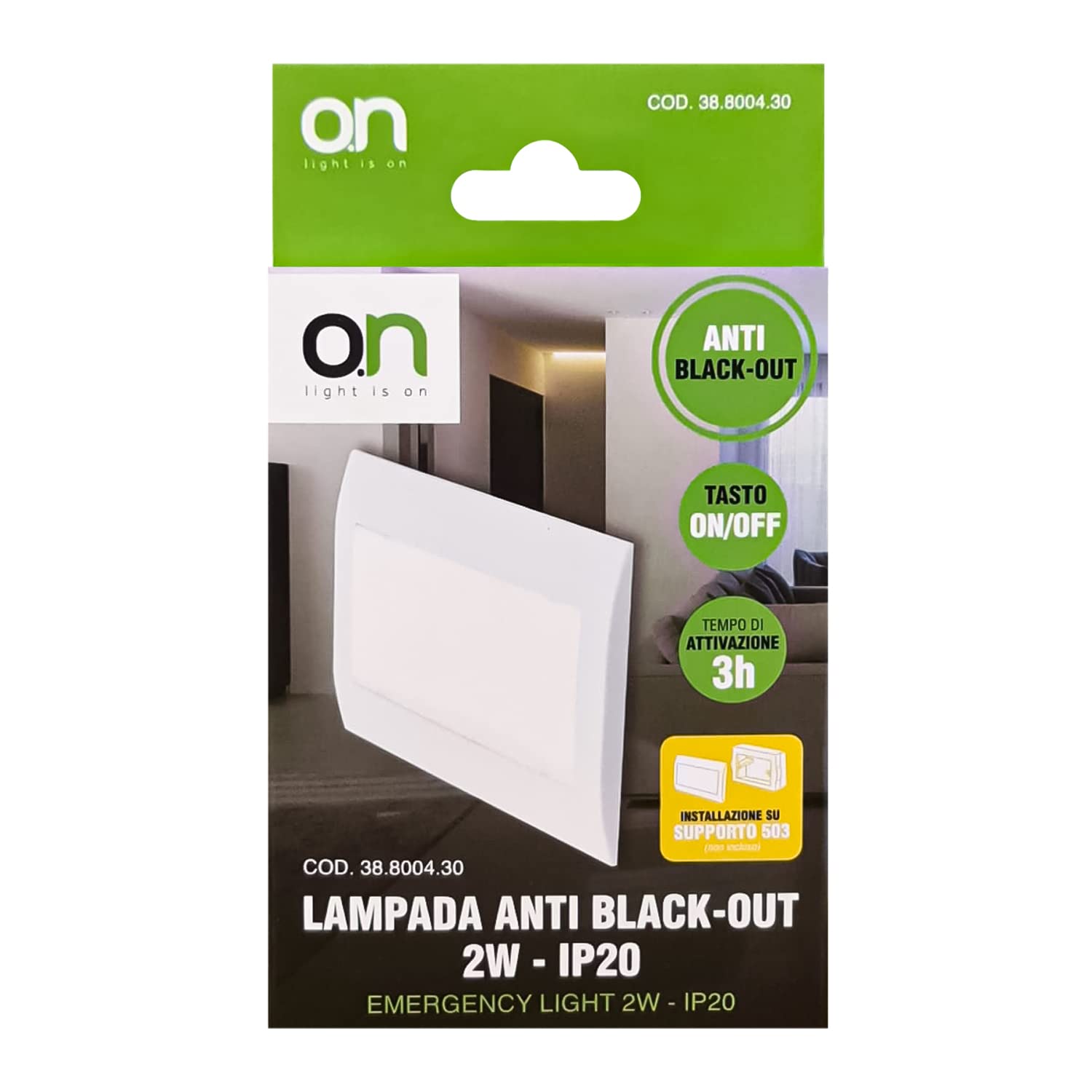

図1: 前面 view of the O.N LED Anti-Blackout Emergency Light.
2. 安全情報
設置およびご使用の前に、すべての安全に関する指示をよくお読みください。指示に従わない場合、感電、火災、その他の危険が生じる可能性があります。
- 電気安全: Installation must be performed by a qualified electrician in accordance with local electrical codes. Ensure the main power supply is disconnected before any installation or maintenance.
- 巻tage: This device operates on 230V AC. Verify your power supply matches this requirement.
- 屋内使用のみ: This product has an IP20 rating, meaning it is protected against solid objects larger than 12.5mm but has no protection against water. Do not install in wet or damp 場所。
- バッテリー： Contains a non-replaceable lithium-ion battery. Do not attempt to open or replace the battery. Dispose of the product responsibly at the end of its life.
- 熱： lを覆わないでくださいamp or install it near heat sources. Ensure adequate ventilation.
- ダメージ： lを使用しないでくださいamp if it is damaged. Contact customer support for assistance.
3. パッケージ内容
パッケージにすべてのアイテムが揃っていることを確認します。
- 1 x O.N LED Anti-Blackout Emergency Light
- 1 x Integrated Lithium Battery (3.7V 700mAh)
- Mounting screws (typically included for wall box installation)
Note: The 503 support box for recessed installation is not included and must be purchased separately.
4. インストール（セットアップ）
このlamp is designed for recessed installation into a standard 503 wall support box. Follow these steps carefully:
- 電源を切る: Before starting, ensure the main power supply to the installation area is completely switched off at the circuit breaker.
- ウォールボックスを準備する: Ensure a standard 503 support box is properly installed in the wall.
- 配線接続: Connect the two wires from the lamp to the 230V AC power supply wires within the wall box. It is crucial to respect the Live (L) and Neutral (N) connections as indicated by your electrical wiring. If unsure, consult a qualified electrician.
- Internal Switch: Locate the small internal switch on the lamp unit. Set this switch to the "ON" position. This activates the anti-blackout function and allows the battery to charge.
- 取り付け: lを慎重に挿入しますamp unit into the 503 support box. Use the provided screws to secure the lamp firmly to the wall box.
- 電力を回復する： Once installation is complete and secure, restore power at the circuit breaker. The lamp will begin charging its internal battery.
Caution: When removing the transparent cover for accessing the internal switch, exercise care to avoid breaking the fixing tabs.
5. 操作手順
The O.N LED Anti-Blackout Emergency Light operates automatically once installed and powered.
- 通常操作: When main power (230V AC) is present, the lamp's internal battery will charge. A small green LED indicator will illuminate to show that the unit is receiving power and charging.
- 緊急モード： 停電の場合tage (blackout), the lamp will automatically switch to battery power and illuminate, providing emergency lighting.
- バッテリーの持続時間: The fully charged battery provides up to 3 hours of continuous light at maximum power during a blackout.
- 充電時間: 電源投入後tage, the battery requires approximately 6-8 hours to fully recharge once main power is restored.
Note: The small green LED indicator remains lit when power is present. If desired, a small piece of opaque tape can be applied over it to reduce its visibility, without affecting functionality.
6. メンテナンス
The O.N LED Anti-Blackout Emergency Light requires minimal maintenance.
- クリーニング： 清掃する前に電源を切ってください。amp's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- バッテリーのケア： To ensure optimal battery life, it is recommended to allow the battery to fully discharge and then fully recharge periodically (e.g., every 3-6 months) if power outages are infrequent.
- 検査： 定期的にlを確認してくださいamp 目に見える損傷や接続の緩みがないか確認してください。
7。 トラブルシューティング
If you encounter issues with your O.N LED Anti-Blackout Emergency Light, refer to the following common problems and solutions:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| Lamp does not light up during a power outage. |
|
|
| Green LED indicator is not lit when power is present. |
|
|
| Lamp emits a buzzing or whistling sound. |
|
|
| Difficulty removing the transparent cover. |
|
|
8. 仕様
Figure 2: Dimensions of the O.N LED Anti-Blackout Emergency Light.
| 特徴 | 詳細 |
|---|---|
| モデル番号 | 8023389640843 |
| ブランド | Electronic Megastore |
| 力 | 2ワット |
| 光束 | 160ルーメン |
| 色温度 | 6500K（クールホワイト） |
| LEDタイプ | SMD2835 |
| LEDの数 | 12 |
| 照明角度 | 120° |
| 電源 | 230 Vac |
| 電池のタイプ | リチウム3.7V700mAh |
| Battery Autonomy (Max Power) | 3時間 |
| 充電時間 | 6～8時間 |
| 保護等級 | IP20 (屋内使用のみ) |
| 材料 | PC (Polycarbonate) / ABS |
| 色 | 白 |
| 寸法（長さ×幅×高さ） | 115 x 80 x 28 mm (4.53 x 3.15 x 1.1 インチ) |
| 重さ | 78 g (0.17 ポンド) |
| インストールタイプ | Recessed, for 503 support box |
9. 保証とサポート
For warranty information and technical support, please contact Electronic Megastore directly through their official channels or the retailer where the product was purchased.
サポートにお問い合わせの際は、モデル番号 (8023389640843) と購入証明をご用意ください。
