1.製品オーバーview
The Hunter Harmony Ceiling Fan Model 50626 is a modern ceiling fan designed for indoor use, featuring a light kit and remote control. Its design incorporates a continuous curve from the ceiling to the glass, providing a contemporary aesthetic. This fan is suitable for small to standard-sized rooms, offering efficient air movement and adequate illumination.
Key features include a WhisperWind motor for quiet operation, three reversible blades, and a reversible motor function for year-round use.

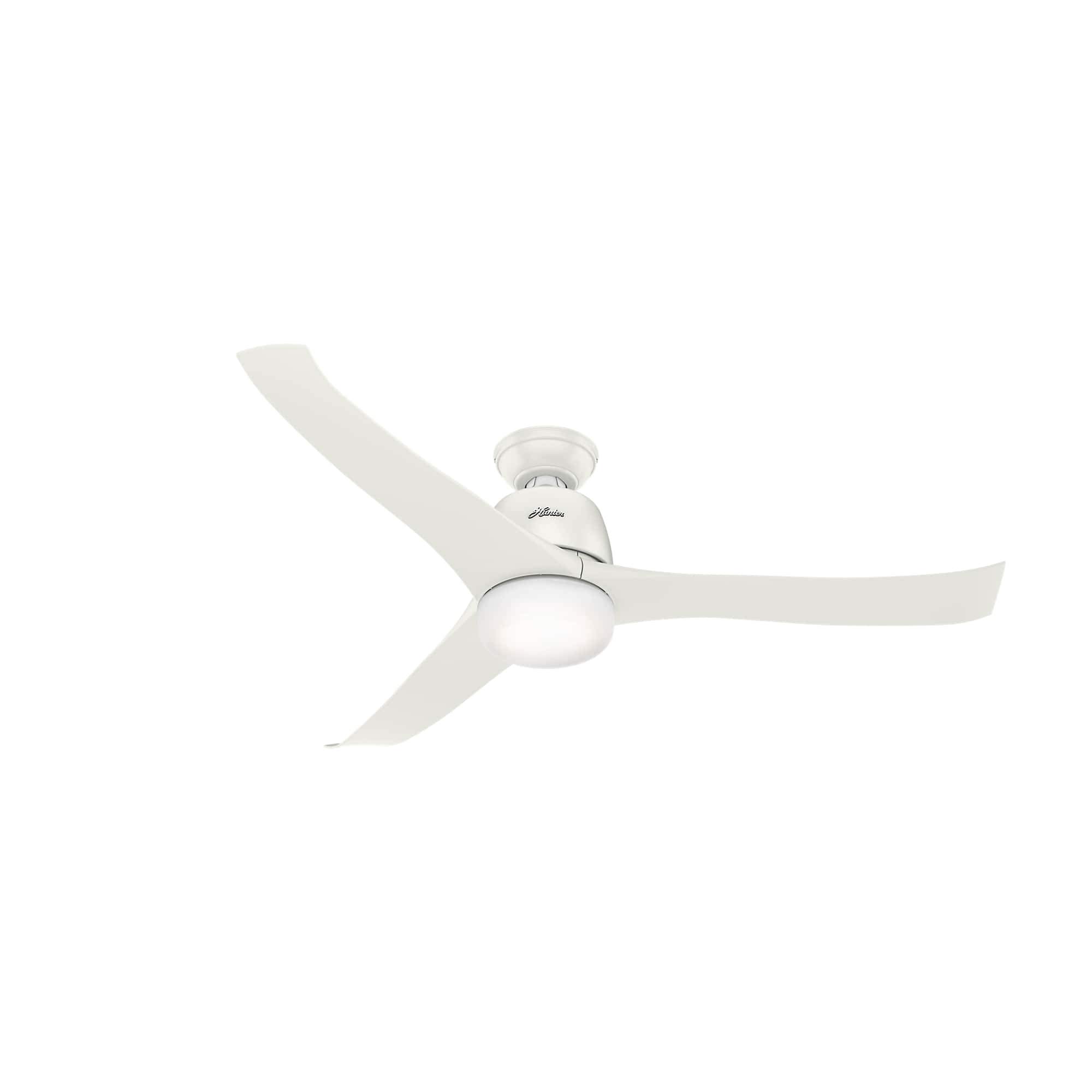

Image 1.1: The Hunter Harmony Ceiling Fan in white, featuring its integrated light kit and three blades.
Image 1.2: The Hunter Harmony Ceiling Fan installed in a modern kitchen setting, demonstrating its aesthetic integration.
2. 安全情報
Please read all instructions carefully before installation and use to prevent injury or damage. Retain this manual for future reference.
- 電気安全: Always disconnect power at the circuit breaker before installing, cleaning, or servicing the fan. All electrical wiring must be performed by a qualified electrician and comply with local codes and regulations.
- 取り付け: Ensure the mounting structure can support the weight of the fan (approximately 8.9 kg) and any additional stress from fan operation. The fan must be mounted with the blades at least 2.1 meters (7 feet) from the floor.
- ブレードクリアランス: ファンが作動している間は、ファンブレードの経路に物を挿入しないでください。
- ライトキット: 指定された電球タイプとワット数のみを使用してくださいtage for the integrated light kit.
- リモートコントロール: リモコンは子供の手の届かないところに保管してください。
3. セットアップとインストール
The Hunter Harmony Ceiling Fan is designed for easy installation with a three-position mounting system, allowing for standard, low, or angled mounting depending on your room's requirements. A 3-inch downrod is included.
3.1 開梱と検査
Carefully remove all components from the packaging. Verify that all parts listed in the 'Components Included' section are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact customer support.
3.2取り付けオプション
The installer's three-position mounting system allows for versatile installation:
- 標準マウント: For ceilings with sufficient height.
- ロープロfile マウント： For rooms with lower ceilings.
- 角度付きマウント: For sloped or vaulted ceilings (adapter may be required, sold separately).
Ensure the chosen mounting method provides adequate clearance for the fan blades.
画像3.1: クローズアップ view of the fan's motor housing and the attachment point for the blades, illustrating the sleek design.
3.3 電気接続
- ブレーカーで電源をオフにします。
- Install the mounting bracket to the ceiling junction box, ensuring it is securely fastened and can support the fan's weight.
- Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full installation guide (not included here, refer to product packaging).
- すべてのワイヤー接続をワイヤーナットで固定します。
3.4 ファンの組み立て
- ダウンロッドをモーターハウジングに取り付けます。
- ファン アセンブリを慎重に持ち上げて、取り付けブラケットから吊り下げます。
- 付属のネジを使用して、ファンブレードをモーターハウジングに取り付けます。
- Install the light kit and glass shade.
For detailed step-by-step instructions and diagrams, please consult the complete installation manual included with your product.
4. 操作手順
The Hunter Harmony Ceiling Fan is operated using the included remote control, offering convenient control over fan speed, light, and direction.
4.1リモコン機能
Image 4.1: The remote control for the Hunter Harmony Ceiling Fan, showing buttons for light, fan speed, and direction.
- ライトボタン: Press to turn the light on/off. Hold to dim or brighten the light.
- ファン速度ボタン: Use the up and down arrows to cycle through the 3 available fan speeds (low, medium, high).
- Fan Direction Button (Asterisk symbol): Press to reverse the direction of the fan blades.
4.2 Reversible Motor for Year-Round Comfort
The fan features a reversible motor, allowing you to change the direction of the blades for optimal comfort in different seasons:
- 夏モード（下向き気流）： 羽根が反時計回りに回転し、下向きの風を作り出して部屋を冷やします。
- 冬モード（上向き気流） Blades rotate clockwise, drawing warm air trapped near the ceiling downwards and distributing it throughout the room. This helps to save on heating costs.
To change the direction, ensure the fan is off, then press the fan direction button on the remote control. Allow the blades to come to a complete stop before reversing direction.
5. メンテナンス
Regular maintenance ensures the longevity and optimal performance of your Hunter Harmony Ceiling Fan.
- クリーニング： ファンを掃除するには、柔らかくて乾いた布で拭いてください。amp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish. Ensure power is disconnected before cleaning.
- ブレードクリーニング: ファンのバランスとパフォーマンスに影響を及ぼす可能性のあるほこりの蓄積を防ぐため、ファンブレードを定期的に掃除してください。
- ライトキット: Replace bulbs as needed. Ensure the replacement bulb matches the specifications of the original.
- ファスナーを締めます: ファンと取り付けハードウェアのすべてのネジと留め具を定期的に点検し、締め付けてください。
6。 トラブルシューティング
If you experience issues with your Hunter Harmony Ceiling Fan, refer to the following common troubleshooting steps:
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| ファンが始動しない | ファンに電力が供給されていない | Check circuit breaker and wall switch. Ensure all electrical connections are secure. |
| ファンがうるさい | Loose screws, unbalanced blades, or motor issue | Tighten all screws on the fan housing and blade attachments. Check for warped or unbalanced blades. Ensure the fan is securely mounted. |
| ライトが点灯しない | Bulb faulty, loose connection, or remote issue | Replace the light bulb. Check wiring connections in the light kit. Ensure remote control batteries are functional. |
| リモコンが動作しない | 電池切れまたは信号干渉 | Replace remote control batteries. Ensure there are no obstructions between the remote and the fan receiver. |
If these steps do not resolve the issue, please contact Hunter customer support.
7. 仕様
| 特徴 | 仕様 |
|---|---|
| ブランド | ハンター |
| モデル名 | 調和 |
| モデル番号 | 50626 |
| 色 | フレッシュホワイト |
| ファンの設計 | 天井ファン |
| 電源 | コード式電気 |
| 製品寸法（奥行き×幅×高さ） | 20.6 x 27.7 x 34.5 cm |
| 部屋タイプ | リビングルーム |
| 特集 | ライトディマー |
| 取り付けタイプ | 天井マウント |
| コントロールタイプ | リモートコントロール |
| 速度の数 | 3 |
| 騒音レベル | 36デシベル |
| 力 | 50ワット |
| ブレード数 | 3 |
| 風量容量 | 毎分4844立方フィート |
| スピード | 208 回転 |
| 巻tage | 240ボルト（AC） |
| スイッチタイプ | プッシュボタン |
| 使用法 | 屋内 |
| インストールタイプ | 天井照明 |
| 材料 | 合金鋼 |
| 認定資格 | CE、RoHS |
| アイテム重量 | 8.9キログラム |
| ダウンロッドの長さ | 3インチ |
| サイズ | 137センチ |
| 含まれているコンポーネント | Body, Remote Control, Blades |
| 欧州連合 | 049694506269 |
| GTIN | 049694506269 |
8. 保証情報
Hunter provides the following warranty for the Harmony Ceiling Fan Model 50626:
- モーター： Limited lifetime warranty. If any part of the ceiling fan motor fails due to a defect in material or workmanship, as determined exclusively by Hunter, Hunter will provide a replacement fan free of charge. This limited warranty applies only to the motor itself and does not cover electronic components such as remote control transmitters, remote control receivers, or capacitors used in conjunction with the motor.
- その他のコンポーネント： Limited one-year warranty. Unless otherwise stated in this warranty, if any part of the Hunter ceiling fan fails at any time within one year from the date of purchase due to a defect in material or workmanship, as determined exclusively by Hunter, Hunter will provide a replacement part free of charge.
保証請求のために購入証明書を保管してください。
9. カスタマーサポート
For further assistance, technical support, or warranty claims, please contact Hunter customer service. Refer to the contact information provided with your product packaging or visit the official Hunter webサイト。
