導入
This manual provides essential information for the proper installation, operation, and maintenance of the Milwaukee Brush Spring Assembly, Model 22-20-0345. Please read these instructions carefully before attempting any installation or maintenance to ensure safety and optimal performance.
安全情報
警告：
- Always disconnect the power tool from its power source before performing any maintenance, cleaning, or installation of parts.
- 設置中は、安全メガネや手袋などの適切な個人用保護具 (PPE) を着用してください。
- 作業エリアが十分に明るく、障害物がないことを確認してください。
- If you are unsure about any procedure, consult a qualified technician or the manufacturer's service center.
製品終了view
The Milwaukee Brush Spring Assembly (Model 22-20-0345) is a critical component designed for specific Milwaukee power tools. It ensures proper contact between the carbon brush and the commutator, which is essential for the motor's electrical function and efficient operation.

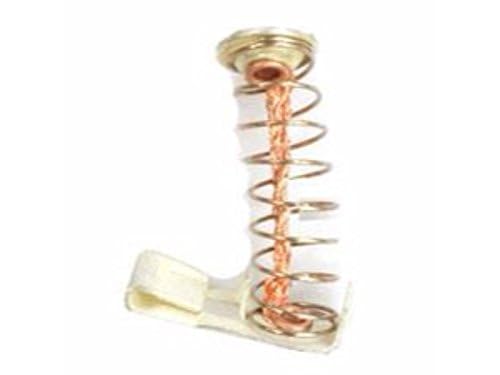

An image showing the Milwaukee Brush Spring Assembly, featuring a coiled spring and a brush holder component. This assembly is crucial for maintaining electrical contact within the power tool's motor.
セットアップとインストール
This section outlines the general steps for replacing a brush spring assembly. Specific procedures may vary depending on the power tool model. Always refer to your tool's specific service manual for detailed instructions.
- 準備： Disconnect the power tool from its power source. Place the tool on a stable, clean surface.
- Access the Brush Holders: Locate and remove the brush caps or access panels on the tool that cover the carbon brushes and spring assemblies. This may require a screwdriver or other appropriate tool.
- 古いアセンブリを削除します: Carefully remove the old brush and spring assembly. Note its orientation for correct reinstallation. The spring may be under tension, so exercise caution.
- コンポーネントの検査: Inspect the commutator for wear or damage. Clean any carbon dust from the brush housing.
- 新しいアセンブリをインストールします: Insert the new Milwaukee Brush Spring Assembly (Model 22-20-0345) into the brush holder. Ensure the brush slides freely and the spring applies adequate pressure to the brush.
- 安全なコンポーネント: Reinstall the brush caps or access panels securely.
- テスト： Briefly connect the tool to power and test its operation. Listen for unusual noises and observe for proper function.
運営原則
The brush spring assembly plays a vital role in the electrical circuit of a universal motor found in many power tools. Its primary function is to maintain constant and optimal pressure on the carbon brush, ensuring continuous electrical contact with the rotating commutator. This consistent contact is crucial for efficient power transfer to the motor's armature, allowing the tool to operate effectively. A worn or faulty spring assembly can lead to intermittent contact, sparking, reduced power, or complete motor failure.
メンテナンス
Regular inspection of the brush spring assembly and associated components can extend the life of your power tool.
- 検査： Periodically inspect the brush spring assembly for signs of wear, corrosion, or loss of tension. The spring should be firm and provide consistent pressure.
- クリーニング： When replacing brushes, clean out any carbon dust accumulation from the brush holders and around the commutator. Carbon dust can cause short circuits.
- 交換： Replace the brush spring assembly if the spring appears weak, deformed, or if the brush holder component is damaged. It is often recommended to replace brush springs when replacing carbon brushes, as both components wear over time.
トラブルシューティング
If your power tool is experiencing issues related to its motor, the brush spring assembly might be a contributing factor. Consider the following:
| 症状 | Possible Cause (Brush Spring Assembly Related) | 解決 |
|---|---|---|
| Intermittent power or tool cutting out | Weak or broken brush spring, poor brush contact | Inspect and replace brush spring assembly if necessary. |
| 整流子の過度の火花 | Insufficient brush pressure from a weak spring | Replace brush spring assembly. Also check carbon brushes and commutator. |
| Reduced motor speed or power | Inconsistent brush contact due to worn spring | Replace brush spring assembly. |
注記： These are common issues. Always consider other potential causes of tool malfunction and consult a professional if unsure.
仕様
- モデル番号: 22-20-0345
- ブランド： ミルウォーキー
- 部品タイプ: Brush Spring Assembly
- ASIN: B077ZDLHGS
- メーカー: ミルウォーキー
- 発売日: 7年2017月XNUMX日
保証とサポート
This Brush Spring Assembly is a replacement part. Warranty coverage for replacement parts typically falls under the warranty of the original power tool or is limited to defects in material and workmanship for a specific period from the date of purchase. Please refer to the warranty documentation provided with your original Milwaukee power tool or visit the official Milwaukee web詳細な保証条件については、サイトをご覧ください。
For technical support, service, or to locate authorized service centers, please visit the official Milwaukee Tool website or contact their customer service department. Always provide the model number of your tool and the part number (22-20-0345) when seeking assistance.
ミルウォーキー公式 Webサイト： www.milwaukeetool.com
