1. はじめに
Thank you for choosing the VENTS VK 125 R1 Centrifugal Extractor Fan. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your unit. Please read these instructions carefully before use and retain them for future reference.
The VENTS VK series centrifugal fans are designed for supply and exhaust ventilation systems requiring high pressure, powerful airflow, and low noise levels. They are suitable for various applications, including hydroponics, residential, and commercial spaces.
2. 安全に関する注意事項
警告： これらの安全に関する指示に従わなかった場合、感電、火災、または重傷を負う可能性があります。
- 電源がボリュームと一致していることを確認してくださいtage specified on the fan's label.
- Disconnect power before any installation, maintenance, or repair work.
- 設置は、すべての地域および国の電気規則に従って、資格のある電気技師が行う必要があります。
- 電源コードやプラグが損傷している状態でファンを操作しないでください。
- Do not insert fingers or foreign objects into the fan's inlet or outlet.
- 感電を防ぐために適切な接地を確保してください。
- 作動中のファンに子供やペットを近づけないでください。
- Do not use the fan in explosive or flammable atmospheres.
3. パッケージ内容
すべてのアイテムが揃っていて、損傷がないことを確認します。
- VENTS VK 125 R1 Centrifugal Extractor Fan
- Mounting brackets (if included)
- 取扱説明書（本書）

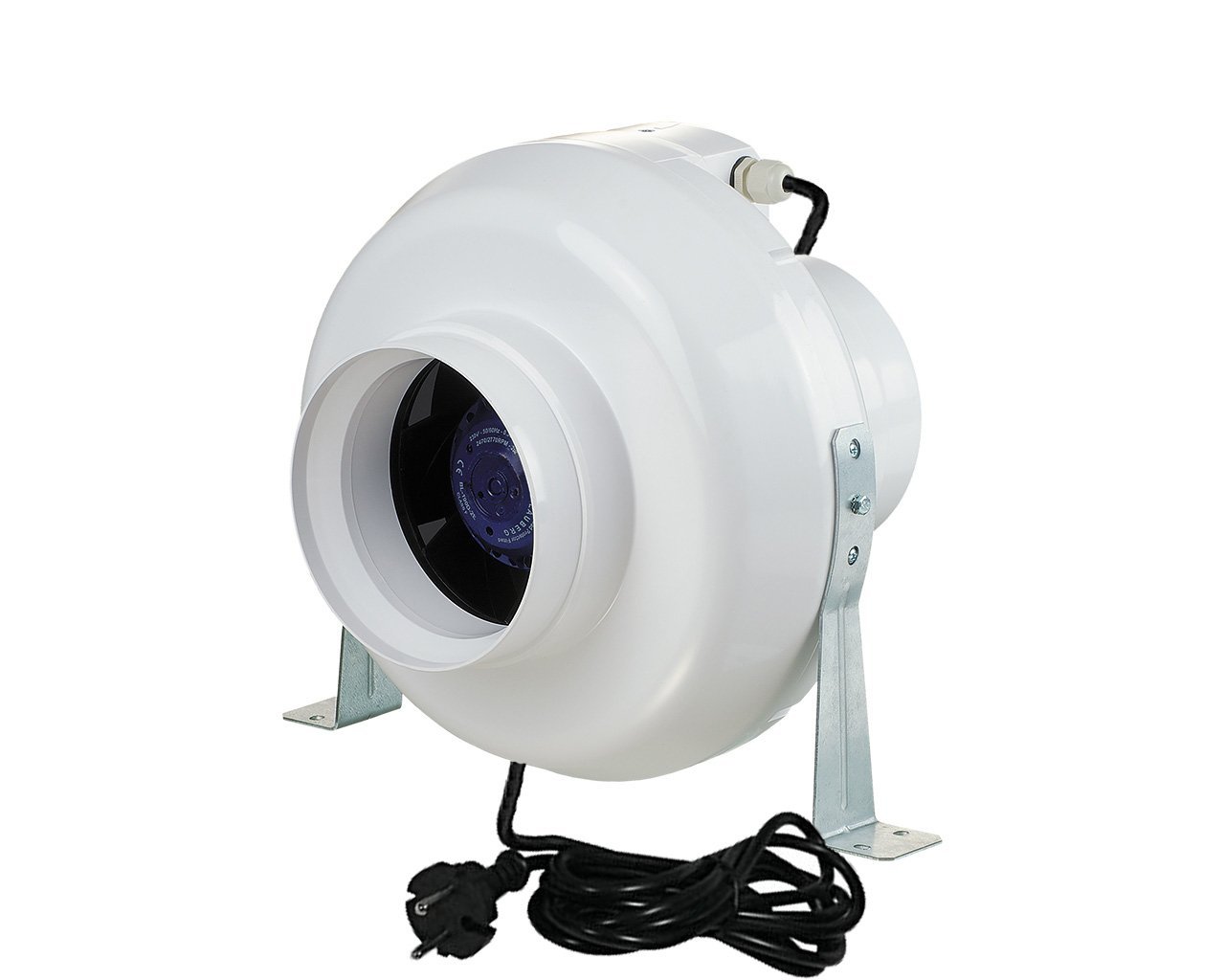

Image 1: VENTS VK 125 R1 Centrifugal Extractor Fan. This image shows the main unit of the VK 125 R1 fan, typically cylindrical with an inlet and outlet, and a junction box for electrical connections.
4. セットアップとインストール
4.1. 取り付け
The VK 125 R1 fan can be mounted at any angle to the wall or ceiling. Ensure the mounting surface is sturdy enough to support the fan's weight and vibrations.
- Position the fan in the desired location, ensuring adequate space for airflow and maintenance.
- Use the provided mounting brackets (if applicable) to secure the fan. Mark the drilling points on the wall or ceiling.
- 穴を開けて適切なアンカーを挿入します。
- Attach the fan securely using screws.
4.2.ダクト接続
Connect appropriate ducting (Ø125 mm) to both the inlet and outlet ports of the fan. Use duct clamp気密接続を確実にするために、接着剤またはテープを使用してください。
4.3. 電気配線
重要： All electrical connections must be performed by a qualified electrician. Disconnect power before wiring.
- Open the terminal box cover on the fan.
- Connect the power supply cable according to the wiring diagram provided inside the terminal box cover. Ensure correct polarity and proper grounding.
- すべての配線接続をしっかりと固定します。
- Close the terminal box cover securely.
5. 操作手順
Once installed and wired correctly, the VENTS VK 125 R1 fan is ready for operation.
- 電源オン: Restore power to the circuit. The fan should begin operating.
- Speed Control (if applicable): If a compatible speed controller is installed (purchased separately), adjust the fan speed as required. Refer to the speed controller's manual for specific instructions.
- 連続運転: The VK 125 R1 is designed for continuous operation.
- 監視： Periodically check the fan for unusual noises or vibrations, which may indicate a problem.
6. メンテナンス
Regular maintenance ensures optimal performance and extends the lifespan of your fan. Always disconnect power before performing any maintenance.
6.1. インペラの清掃
- ファンを電源から外します。
- Carefully remove the fan housing or access panel to expose the impeller.
- Use a soft brush or vacuum cleaner to remove dust and debris from the impeller blades. Do not use abrasive cleaners or solvents.
- Ensure the impeller rotates freely without obstruction.
- Reassemble the fan housing securely.
6.2. 一般検査
- すべての電気接続部の締め付け具合と摩耗の兆候を点検します。
- Inspect the fan casing for any damage or cracks.
- Ensure ducting connections are secure and airtight.
7。 トラブルシューティング
Before contacting technical support, refer to the following table for common issues and solutions.
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| ファンが始動しない | 電源なし | Check power connection, circuit breaker, and wiring. |
| ファンが異常な音を立てる | Impeller obstructed or damaged; loose mounting. | Disconnect power, inspect impeller for debris, ensure secure mounting. |
| 空気の流れが減少 | Clogged impeller or ducting; leaks in ductwork. | Clean impeller, check ducting for blockages or leaks. |
8. 仕様
- モデル： VK 125 R1
- ダクトの直径： Ø125mm
- エアフロー容量: 最大355 m³/時
- タイプ： 遠心排気ファン
- ブランド： 通気口
- (Note: Specific electrical parameters like voltage、ワットtage, and current should be verified on the product label.)
9. 保証とサポート
VENTS products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official VENTS webサイトでご確認ください。保証請求に備えて購入証明書を保管してください。
For technical support, spare parts, or service, please contact your local VENTS distributor or the retailer from whom you purchased the product. Provide your model number (VK 125 R1) and a detailed description of the issue when seeking assistance.
