POWERMATIC Model 30 Belt & Disc Sander and Model 33 Belt Sander Operator's and Parts Manual

1. はじめに

This document serves as the official Operator's and Parts Manual for the POWERMATIC Model 30 Belt & Disc Sander and the Model 33 Belt Sander. It is a reproduction of the original manual, meticulously edited for clarity and durability. This manual is essential for proper operation, maintenance, and identification of parts for your sander, covering machines with serial numbers 0-0101 and up.

The content includes detailed information on lubrication, operational adjustments, routine maintenance procedures, and control functions. Additionally, it provides a comprehensive parts list accompanied by exploded view diagrams to assist in identifying and ordering replacement components. This manual also covers the vacuum system for the belt and disc sander.

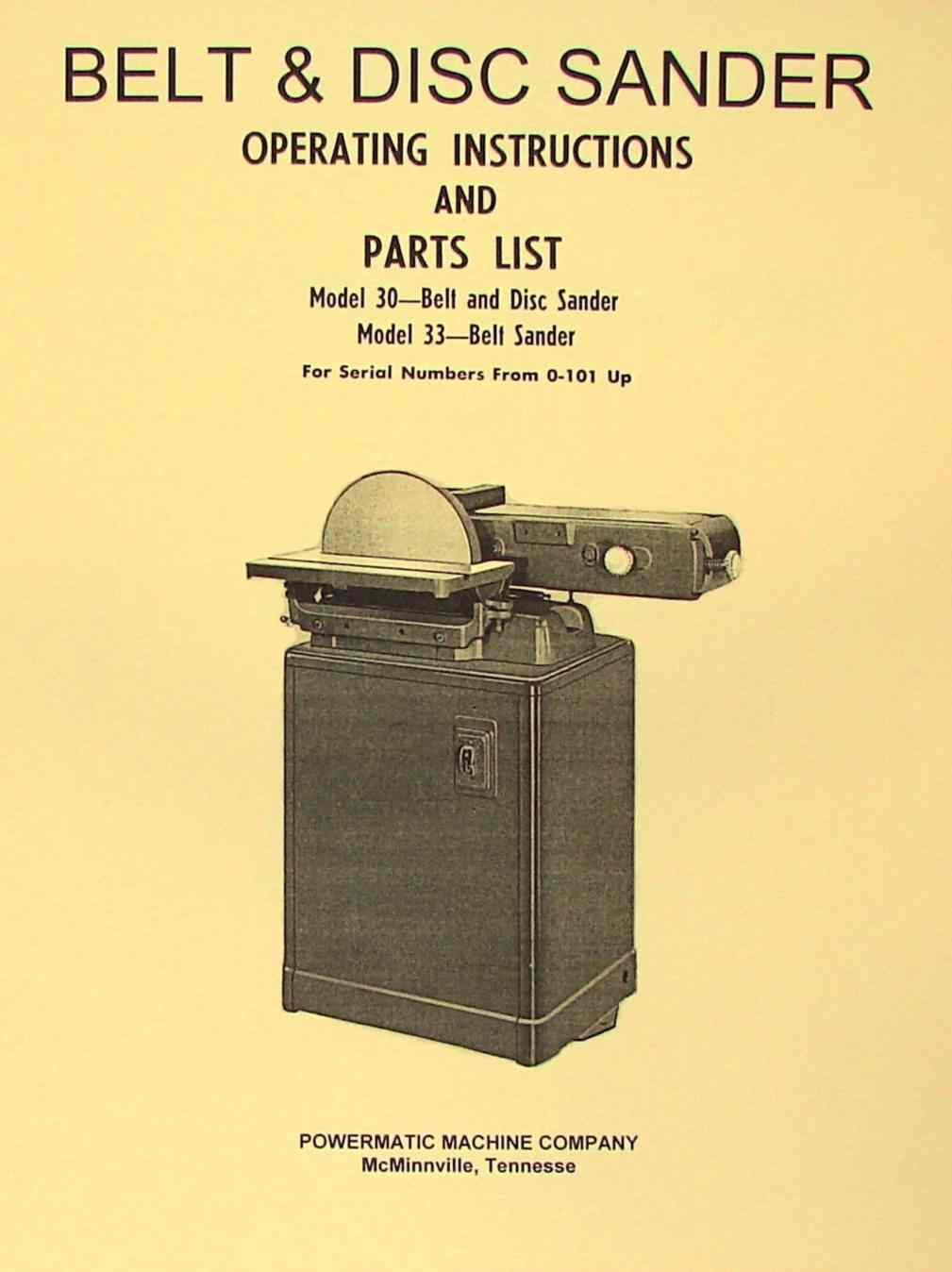

Figure 1.1: Cover of the POWERMATIC Model 30 and 33 Sander Operator's and Parts Manual.

2. 安全に関する注意事項

Always prioritize safety when operating any power tool. Failure to follow these instructions may result in serious injury or damage to the equipment.

• マニュアルを読む: Before operating the sander, thoroughly read and understand all instructions and warnings in this manual.
• 目の保護具を着用してください: Always wear ANSI-approved safety goggles or a face shield to protect against flying debris.
• 安全なワークピース: ワークピースがしっかりと固定されていることを確認するamped or held against the work table to prevent kickback or loss of control.
• ガードを所定の位置に配置してください: Never operate the sander without all guards properly installed and in good working order.
• 電源を切る: Always disconnect the sander from the power source before making adjustments, changing belts/discs, or performing maintenance.
• 適切な換気: Operate the sander in a well-ventilated area. Connect to a dust collection system to minimize airborne dust.
• 作業エリアをクリア: Keep the work area clean, uncluttered, and well-lit. Remove all tools and scraps before starting the sander.
• ゆったりとした服装は避けてください: Do not wear loose clothing, gloves, neckties, or jewelry that can become entangled in moving parts. Tie back long hair.
• 正しいアクセサリを使用する: Only use accessories recommended by POWERMATIC for this sander.
• 良好な足場を維持する: Ensure stable footing and balance at all times.

3. セットアップ

Proper setup is crucial for safe and efficient operation of your POWERMATIC sander.

1. 開梱と検査： Carefully remove the sander from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and supplier.
2. Mounting the Sander: Securely mount the sander to a sturdy workbench or stand using appropriate hardware. Ensure the mounting surface is level and stable to prevent vibration and movement during operation.
3. 電源接続: Connect the sander to a grounded electrical outlet that matches the voltageと amperage requirements specified on the motor nameplate. Do not use extension cords unless absolutely necessary, and ensure they are rated for the tool's power requirements.
4. 集塵システム: Connect a suitable dust collection system to the sander's dust port(s). Effective dust collection is vital for operator safety and machine longevity.
5. 初期調整: Before first use, check all factory-set adjustments, such as belt tracking and disc table alignment, and adjust as necessary according to the operating instructions.

4. 操作手順

Familiarize yourself with the controls and functions before beginning any sanding operation.

4.1. コントロールview

• オン/オフスイッチ： 位置した (refer to your specific model's diagram for location), this switch controls power to the motor.
• Belt Tracking Knob: Used to adjust the belt's position on the rollers, ensuring it runs centrally.
• ベルトテンションレバー: Releases or applies tension to the sanding belt for installation or removal.
• Disc Table Adjustment: Allows tilting the work table for angled sanding operations.
• Miter Gauge Slot: For use with a miter gauge to guide workpieces at specific angles.

4.2. Belt Installation and Tensioning

1. 電源を切ります。
2. ベルトテンションレバーを解放します。
3. Slide the old belt off (if applicable) and slide the new belt onto the rollers, ensuring the directional arrow on the belt matches the rotation direction of the sander.
4. Engage the belt tension lever.
5. Reconnect power and briefly turn on the sander to check belt tracking. Adjust with the belt tracking knob until the belt runs true.

4.3. ディスクのインストール

1. 電源を切ります。
2. Remove the old sanding disc (if applicable). Clean the disc plate thoroughly.
3. Peel the backing from the new adhesive-backed sanding disc.
4. Carefully align the new disc with the disc plate and press firmly from the center outwards to avoid air bubbles.

4.4. サンディング技術

• ベルトサンディング: Use for edge sanding, shaping, and removing material quickly. Always sand with the grain of the wood.
• ディスクサンディング: Ideal for end grain sanding, bevels, and curves. Always work on the downward-rotating side of the disc to prevent the workpiece from being thrown upwards.
• Workpiece Pressure: Apply light, even pressure. Excessive pressure can overload the motor, burn the workpiece, and reduce abrasive life.

5. メンテナンス

定期的なメンテナンスにより、サンダーの寿命が長くなり、最適なパフォーマンスが確保されます。

• クリーニング： After each use, disconnect power and clean all dust and debris from the sander, especially around the motor vents, belt, and disc areas. Use compressed air or a brush.
• 潤滑: Refer to the lubrication schedule in the original manual for specific points and types of lubricant. Generally, moving parts and bearings may require periodic lubrication.
• ベルトとディスクの交換: Replace sanding belts and discs when they become worn, torn, or lose their abrasive quality. Worn abrasives can cause burning and inefficient sanding.
• 検査： Periodically inspect the power cord for damage, check all fasteners for tightness, and examine guards for proper function.

6。 トラブルシューティング

このセクションでは、サンダーで発生する可能性のある一般的な問題について説明します。

• サンダーが始動しない:
  • 電源接続と回路ブレーカーを確認してください。
  • オン/オフスイッチが完全に接続されていることを確認します。
  • 電源コードに損傷がないか点検してください。
• 過度の振動:
  • Check if the sander is securely mounted.
  • Inspect sanding belt/disc for damage or improper installation.
  • すべての留め具がしっかりと締まっていることを確認してください。
• Poor Sanding Results / Burning Wood:
  • Replace worn sanding belt/disc.
  • Reduce workpiece pressure.
  • Ensure proper dust collection to prevent abrasive loading.
• ベルトトラッキングの問題:
  • Adjust the belt tracking knob until the belt runs centrally.
  • ベルトの張りを確認してください。
  • Inspect belt for damage or stretching.

For issues not covered here, refer to the detailed troubleshooting section in the original manual or contact customer support.

7. 仕様

8. 部品リストと図面

This manual includes a comprehensive parts list with corresponding exploded view diagrams. These diagrams illustrate the assembly of the POWERMATIC Model 30 and 33 Sanders, allowing for easy identification of individual components. When ordering replacement parts, always refer to the part numbers provided in this section to ensure compatibility.

The parts list covers all major assemblies, including the belt mechanism, disc assembly, motor components, and the vacuum system. Detailed illustrations help in understanding the correct placement and orientation of each part during assembly or repair.

9. 保証とサポート

Specific warranty information for the POWERMATIC Model 30 and 33 Sanders would typically be provided with the original purchase documentation or directly by the manufacturer. As this document is a reproduction of an operator's and parts manual, it does not contain current warranty details.

For technical support, service, or warranty claims, please contact POWERMATIC customer service or an authorized service center. Ensure you have your sander's model number and serial number available when seeking assistance.
