1. 安全に関する注意事項
Read and understand all safety instructions before operating the Holzmann TBS 650PRO manual sheet metal guillotine shear. Failure to follow these instructions may result in serious injury or damage to the equipment.
- 安全メガネ、手袋、丈夫な履物などの適切な個人用保護具 (PPE) を常に着用してください。
- Ensure the machine is securely mounted on a stable and level workbench before use.
- Keep hands and fingers clear of the cutting blade and hold-down device during operation.
- Do not exceed the maximum cutting capacity of 650 mm width and 1.5 mm thickness.
- Keep the work area clean and well-lit. Remove all tools and debris from the machine before operation.
- Only authorized and trained personnel should operate this equipment.
- Inspect the blade and all moving parts for damage or wear before each use. Do not operate if damaged.
2.製品オーバーview
The Holzmann TBS 650PRO is a manual sheet metal guillotine shear designed for precise cutting of sheet materials up to 650 mm wide and 1.5 mm thick. It features robust construction and user-friendly adjustments for efficient operation.
主な特徴:
- Manual Back Gauge: Equipped with a measuring scale for accurate material positioning from 0 to 500 mm.
- Cutting Area Illumination: Provides clear visibility of the cutting line for enhanced precision.
- 高品質のブレード： Features a cutting blade made from carbon and chrome content steel for durability and clean cuts.
- Fixed Angular Stop: Located on the front for consistent angled cuts.
- Automatic Sheet Hold-Down Device: Secures the sheet metal firmly in place just before the cut, preventing movement and ensuring accuracy.

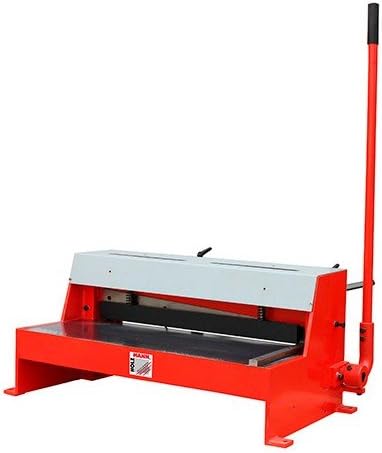

Figure 1: Holzmann TBS 650PRO Manual Sheet Metal Guillotine Shear. This image shows the complete shear with its red frame, grey blade guard, and long operating handle.
3. セットアップ
3.1 開梱
- Carefully remove the shear from its packaging.
- 輸送中の損傷がないか機械を点検してください。損傷がある場合は、直ちにサプライヤーに報告してください。
- 梱包リストに記載されているすべてのコンポーネントが揃っていることを確認します。
3.2 組み立てと配置
- Position the shear on a sturdy, level workbench or stand capable of supporting its weight (Net Weight: 105 Kg).
- Securely fasten the shear to the workbench using appropriate bolts and nuts to prevent movement during operation.
- Attach the operating handle to its designated pivot point, ensuring it is firmly secured.
- Ensure there is adequate clear space around the machine for safe operation and material handling.
4. 操作手順
4.1 Preparing the Material
- Ensure the sheet metal to be cut is clean and free of burrs or obstructions.
- Verify that the material thickness does not exceed 1.5 mm and the width does not exceed 650 mm.
4.2 Adjusting the Back Gauge
The manual back gauge allows for precise control over the cutting length. To adjust:
- Loosen the locking mechanism for the back gauge.
- Slide the back gauge to the desired measurement using the integrated scale (range 0 to 500 mm).
- Tighten the locking mechanism to secure the back gauge in position.
4.3 切断手順
- Position the sheet metal against the back gauge and the fixed angular stop (if required) on the front.
- Ensure the material is flat and fully supported on the cutting bed.
- Lower the operating handle slowly. The automatic sheet hold-down device will engage, securing the material.
- Continue to lower the handle with steady pressure to execute the cut.
- Once the cut is complete, raise the operating handle to its original position. The hold-down device will release.
- Carefully remove the cut material and any off-cuts.
5. メンテナンス
Regular maintenance ensures the longevity and optimal performance of your Holzmann TBS 650PRO shear.
5.1 クリーニング
- After each use, clean the cutting bed and blade area to remove metal shavings and dust.
- Use a brush or compressed air for cleaning. Avoid using harsh chemicals that may damage painted surfaces.
5.2 刃の手入れ
- Regularly inspect the carbon-chrome steel cutting blade for sharpness and any signs of damage (nicks, dullness).
- A dull blade can lead to poor cut quality and increased effort. If the blade is dull, it should be professionally sharpened or replaced.
- When replacing the blade, ensure it is a genuine Holzmann replacement part for optimal performance and safety.
5.3 潤滑
- Apply a light machine oil to all pivot points and sliding surfaces periodically to ensure smooth operation.
- Wipe off any excess oil to prevent dust accumulation.
5.4 ストレージ
- Store the shear in a dry, clean environment to prevent rust and corrosion.
- If storing for an extended period, apply a thin layer of protective oil to exposed metal surfaces, especially the blade.
6。 トラブルシューティング
このセクションでは、操作中に発生する可能性のある一般的な問題について説明します。
| 問題 | 考えられる原因 | 解決 |
|---|---|---|
| 不均一または粗いカット | Dull blade, improper material positioning, loose back gauge. | Inspect and sharpen/replace blade. Ensure material is flush against stops. Tighten back gauge. |
| Difficulty operating handle | Material too thick, lack of lubrication, binding mechanism. | Verify material thickness is within limits. Lubricate pivot points. Check for obstructions. |
| Material slips during cut | Hold-down device not engaging properly, material not flat. | Ensure hold-down device is functioning. Position material flat on the bed. |
7. 仕様
Technical specifications for the Holzmann TBS 650PRO Manual Sheet Metal Guillotine Shear.
| 仕様 | 価値 |
|---|---|
| モデル番号 | TBS650PRO |
| 最大切断幅 | 650ミリメートル |
| 最大。 材料の厚さ | 1.5ミリメートル |
| Back Gauge Range | 0～500mm |
| 正味重量 | 105 キロ |
| 総重量 | 150 キロ |
| パッケージ寸法 | 940 x 500 x 500 ミリメートル |
| ブレード材質 | Carbon and Chrome Content Steel |
| メーカー | ホルツマン |
8. 保証とサポート
8.1 保証情報
The Holzmann TBS 650PRO comes with a 2年間保証. This warranty covers manufacturing defects but excludes wear parts. Please retain your proof of purchase for warranty claims.
8.2 カスタマーサポート
For technical assistance, spare parts, or warranty inquiries, please contact your authorized Holzmann dealer or the retailer from whom you purchased the product. Provide your model number (TBS650PRO) and purchase date when contacting support.
