GLOBAL Air 3-in-1 Portable Air Conditioner User Manual

1.製品オーバーview

The GLOBAL Air 10,000 BTU Portable Air Conditioner is a versatile 3-in-1 unit designed to provide cooling, dehumidification, and fan functions for rooms up to 300+ sq ft. It features digital controls, a remote control, and a self-evaporative system for enhanced convenience.

主な特徴:

• 10,000 BTU (ASHRAE) / 6,000 BTU (SACC) Cooling Capacity: Effectively cools areas up to 300+ sq ft.
• 3-in-1 機能: Operates as an Air Conditioner, Dehumidifier, and Fan with 3-speed settings.
• 低騒音動作: Designed for quiet performance with noise levels between 52-56 dB.
• 便利なコントロール： Includes an automatic swing mode, built-in 24-hour timer, remote control, and push-button control panel.
• 簡単な設置とメンテナンス: Comes with a window mount exhaust kit and features a removable, washable air filter.

2. コンポーネントとコントロール

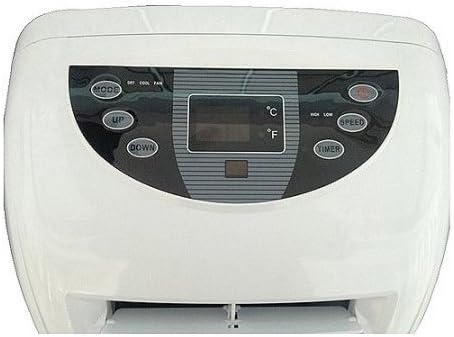

コントロールパネル：

• モードボタン: 冷房、乾燥（除湿）、ファン モードを切り替えます。
• 上/下ボタン: Adjust temperature settings and timer duration.
• スピードボタン: Selects fan speed (High, Low).
• タイマーボタン： 自動オン/オフ操作の 24 時間タイマーを設定します。
• 電源スイッチ： ユニットの電源をオンまたはオフにします。

公式製品ビデオ:

3. セットアップとインストール

Setting up your portable air conditioner is straightforward with the included window mount exhaust kit and exhaust hose. Follow these steps for optimal performance:

1. ポジショニング: Place the unit on a stable, level surface near a window. Ensure there is adequate space around the unit for proper airflow.
2. ウィンドウキットアセンブリ: Assemble the window slide kit according to the instructions provided in the separate user guide. Adjust it to fit your window opening.
3. 排気ホース接続: Connect one end of the exhaust hose to the air outlet on the back of the unit and the other end to the adapter in the window slide kit. Ensure a secure fit to prevent air leakage.
4. 電源接続: ユニットを接地されたコンセントに差し込みます。

4. 操作

The GLOBAL Air Portable Air Conditioner offers multiple operating modes to suit your comfort needs.

動作モード:

• クールモード： Provides powerful cooling to lower room temperature. Adjust the desired temperature using the UP/DOWN buttons.
• 除湿モード: 空気中の余分な水分を除去します。湿気の多い環境に最適です。
• ファンモード： Circulates air without cooling, offering a refreshing breeze. Select fan speed (High/Low) using the SPEED button.

Cooling Capacity Guide:

5. メンテナンス

定期的なメンテナンスにより、エアコンの寿命が長くなり、効率的に動作することが保証されます。

エアフィルターの掃除：

• The unit features a removable air filter that should be cleaned regularly (e.g., every two weeks or more often depending on usage and air quality).
• To clean, gently remove the filter, wash it with warm, soapy water, rinse thoroughly, and allow it to air dry completely before reinserting.

排水:

This unit features a self-evaporative system, which typically means you won't need to drain water frequently. However, in very humid conditions, the internal water tank may fill up. If the unit stops operating and displays a 'W' or similar indicator, it may require manual drainage. Refer to the full user guide for detailed instructions on manual drainage procedures.

6。 トラブルシューティング

If your air conditioner is not functioning as expected, refer to the following common issues and solutions:

• Unit is loud: Ensure the unit is placed on a stable and level surface. Check for any obstructions in the air intake or output.
• Air is not cold in cooling mode: Verify that the air intake or output is not blocked. Clean the air filters if they are dirty. Check for any heat sources near the unit. Confirm the temperature setting is lower than the ambient room temperature and that the fan speed is appropriate.
• Unit stops operating: If a 'W' or similar indicator appears, the internal water tank may be full and require drainage.

For more detailed troubleshooting steps, please consult the complete User Manual PDF linked in the support section.

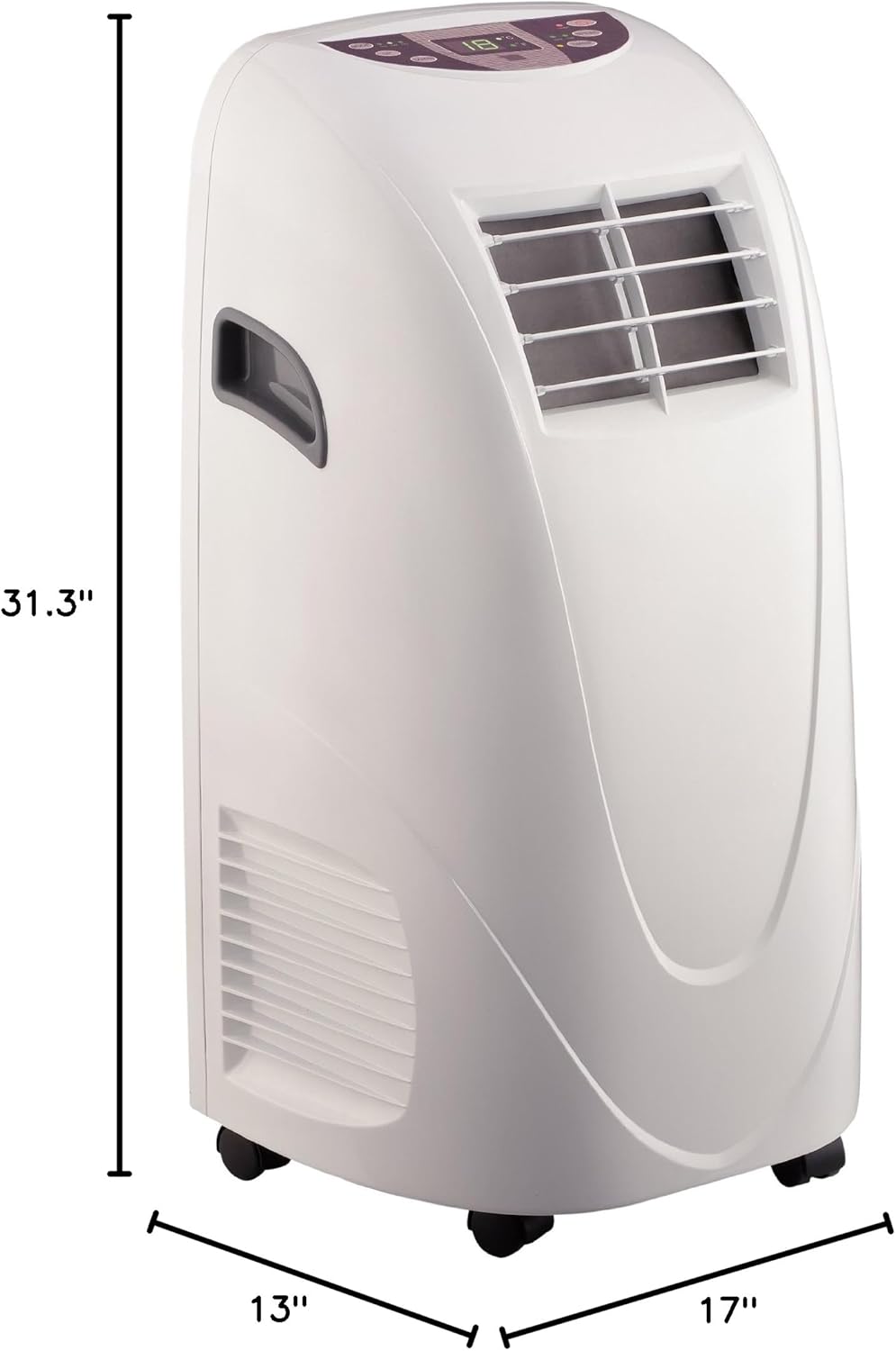

7. 仕様

8. 保証とサポート

For detailed warranty information and customer support, please refer to the official user guide.

• ユーザーガイド（PDF）： ユーザーガイドのダウンロード
• カスタマーサポート: さらに詳しいサポートについては、 Amazonの商品ページ or contact GLOBAL Air customer service.
