Gallery Maria Theresa Chandelier User Manual

導入

This manual provides detailed instructions for the safe assembly, installation, operation, and maintenance of your Gallery Maria Theresa Chandelier. Please read all instructions carefully before beginning installation to ensure proper function and safety. This chandelier is designed to enhance the aesthetic of your living space with its elegant crystal design.

The Gallery Maria Theresa Chandelier (Model 804879400479) features 13 lights and is adorned with Empress Crystal. It measures approximately 30 inches in height and 28 inches in width. Assembly is required for this product.

安全情報

• 警告： 感電の危険があります。設置やメンテナンスを行う前に、ヒューズボックスまたは回路ブレーカーの電源を切ってください。
• すべての電気接続は、地域の法令、条例、または米国電気工事規程（NEC）に従って行ってください。電気配線に不慣れな場合は、資格のある電気技師にご相談ください。
• この器具を濡れた場所や暗い場所に取り付けないでください。amp locations. This product is intended for indoor use only.
• 取り付け面が器具の重量を支えられることを確認してください。
• 破損を防ぐため、クリスタル部品を慎重に取り扱ってください。
• 最大ワット数を超えないでくださいtag電球あたり 40 ワットの e。
• 梱包材はお子様の手の届かないところに保管してください。

パッケージ内容

Carefully unpack all components and check against the list below. Retain all packaging materials until assembly is complete to ensure no parts are discarded.

• Chandelier Frame (main body)
• Crystal Components (various shapes and sizes for dressing the chandelier)
• Mounting Hardware (canopy, mounting strap, screws, wire nuts)
• チェーン（18インチ）
• Instruction Manual and Diagram
• 真正性証明書

注意: 電球は付属しておりませんので別途ご購入ください。

セットアップとインストール

Installation of this chandelier requires electrical wiring knowledge. It is highly recommended to have a qualified, licensed electrician perform the installation to ensure safety and compliance with electrical codes.

1. インストールの準備：
   • Turn off the main power supply at the circuit breaker or fuse box.
   • Ensure the mounting location is structurally sound and can support the chandelier's weight.
   • すべてのコンポーネントを開梱し、傷がつかないように清潔で柔らかい表面の上に広げます。
2. シャンデリアのフレームを組み立てる:
   • Follow the provided diagram and instructions to assemble the main frame of the chandelier. This typically involves attaching arms and central column sections.
3. 器具を取り付ける:
   • Attach the mounting strap to the junction box in the ceiling.
   • Connect the chain to the chandelier's top loop and the mounting canopy. Adjust the chain length as desired (maximum 18 inches provided).
   • Carefully lift the chandelier and make the electrical connections: connect the fixture's live wire (usually black) to the house's live wire, the fixture's neutral wire (usually white) to the house's neutral wire, and the ground wire to the house's ground wire. Secure connections with wire nuts.
   • Tuck wires into the junction box and secure the canopy to the mounting strap.
4. Dress with Crystals:
   • Once the frame is securely mounted, begin attaching the Empress Crystal components. Refer to the provided diagram for the correct placement of each crystal strand and pendant. This process can be time-consuming and requires careful handling.
5. 電球を取り付ける:
   • Screw 13 E12 candelabra base bulbs (not included) into the sockets. Ensure bulbs do not exceed 40 watts each.
6. 電力を回復する：
   • Once assembly and wiring are complete, restore power at the circuit breaker.

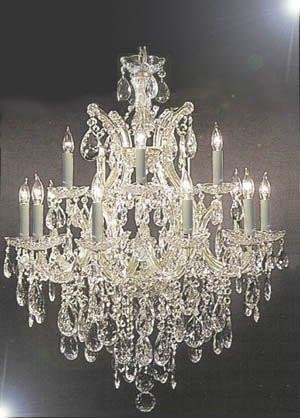

Figure 1: Fully assembled Gallery Maria Theresa Chandelier. This image displays the intricate crystal design and 13 illuminated candle-style bulbs. The chandelier features multiple tiers of crystal strands and pendants, reflecting light to create a sparkling effect. It is designed for ceiling mount installation.

操作手順

The Gallery Maria Theresa Chandelier is operated via a standard wall switch. For enhanced control over lighting ambiance, consider installing a compatible dimmer switch (sold separately).

• 電球の互換性： This fixture is compatible with LED, incandescent, halogen, and compact fluorescent bulbs. Ensure bulbs have an E12 candelabra base.
• ワットtage: 電球40個あたりXNUMXワットを超えないようにしてください。
• コントロール： The chandelier can be turned ON/OFF using a standard wall switch. If a dimmer switch is installed, adjust the light intensity by rotating or sliding the dimmer control.

メンテナンス

Regular maintenance will help preserve the beauty and functionality of your chandelier.

• フレームの掃除： Dust the metal frame regularly with a soft, dry cloth. For more thorough cleaning, dampen the cloth slightly with water and a mild, non-abrasive cleaner. Avoid harsh chemicals that may damage the finish.
• クリスタルのクリーニング: The Empress Crystals can be cleaned with a soft, lint-free cloth dampened with a specialized crystal cleaner or a solution of mild soap and water. Gently wipe each crystal. Avoid spraying cleaner directly onto the fixture to prevent liquid from entering electrical components.
• 電球の交換: Always turn off the power at the circuit breaker before replacing bulbs. Allow bulbs to cool completely before touching. Unscrew the old bulb and screw in a new E12 candelabra base bulb, ensuring it does not exceed 40 watts.

トラブルシューティング

シャンデリアに問題が発生した場合は、次の一般的な問題と解決策を参照してください。

If problems persist, please contact Gallery customer support.

仕様

保証情報

Your Gallery Maria Theresa Chandelier is backed by a Gallery warranty, established in 1978. Each item includes a Certificate of Authenticity, certifying it as an authentic Gallery lighting fixture. Please retain your proof of purchase and Certificate of Authenticity for warranty claims.

For specific warranty terms and conditions, please refer to the documentation included with your product or contact Gallery customer support.

カスタマーサポート

For any technical assistance, questions regarding assembly, installation, or troubleshooting, Gallery provides free technical support.

Please refer to the contact information provided with your product for the toll-free support number.

When contacting support, please have your model number (804879400479) and proof of purchase ready.
