1. はじめに
The Samson LM5 is a compact, omnidirectional lavalier microphone designed for clear voice reproduction in various applications. It features a 3.5mm miniplug connector, specifically engineered for seamless integration with Samson wireless beltpack transmitters. This manual provides essential information for the proper setup, operation, and maintenance of your LM5 microphone, ensuring optimal performance and longevity.
含まれるコンポーネント:
- LM5 Lavalier Microphone
- フォームウインドスクリーン
- マイククリップ
2. セットアップ
2.1 Attaching the Microphone Clip
Secure the included microphone clip to the body of the LM5 lavalier microphone. The clip allows for easy attachment to clothing, such as a lapel or tie, ensuring stable positioning during use.
2.2 フォームウィンドスクリーンの取り付け
Gently slide the foam windscreen over the microphone capsule. The windscreen helps to reduce plosive sounds (P-popping) and wind noise, improving overall audio clarity.
2.3 送信機への接続
The LM5 microphone is designed for use のみ with Samson wireless beltpack transmitters. Insert the 3.5mm miniplug connector firmly into the microphone input jack on your Samson wireless beltpack transmitter. Ensure the connection is secure to prevent signal loss.

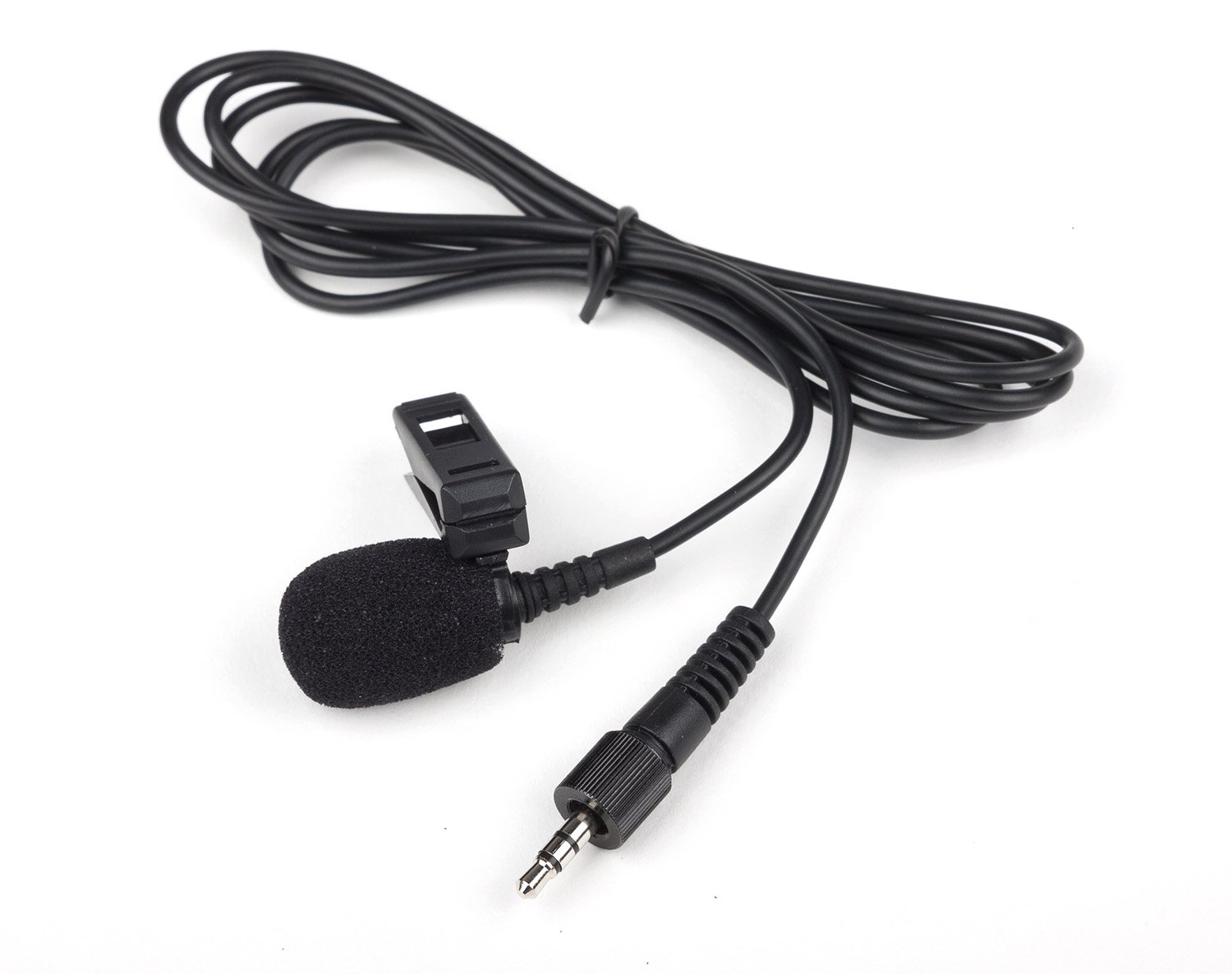

Image: The Samson LM5 Lavalier Microphone, shown with its 3.5mm miniplug connector and an attached foam windscreen. This image illustrates the microphone's compact design and its primary components.
3. 操作手順
3.1 マイクの配置
For optimal sound quality, position the LM5 microphone approximately 6-8 inches (15-20 cm) from the speaker's mouth. Attach it to clothing in a location that minimizes rubbing or contact with other objects, which can cause unwanted noise.
3.2電源オン
Once connected to your Samson wireless beltpack transmitter, refer to your transmitter's manual for instructions on powering it on and establishing a wireless connection with its receiver.
3.3 レベルの調整
Adjust the input gain on your Samson wireless beltpack transmitter and the corresponding receiver to achieve appropriate audio levels. Monitor the audio output to prevent clipping or distortion.
4. メンテナンス
4.1 クリーニング
To clean the microphone, gently wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or solvents. The foam windscreen can be carefully removed and cleaned with mild soap and water, then allowed to air dry completely before reattaching.
4.2 ストレージ
When not in use, store the LM5 microphone in a clean, dry place, away from extreme temperatures and humidity. Avoid tightly coiling the cable to prevent damage.
4.3 ケーブルのケア
Handle the microphone cable with care. Avoid sharp bends, kinks, or excessive pulling, which can damage the internal wiring and connector.
5。 トラブルシューティング
5.1 音が出ない
- 接続を確認してください: Ensure the 3.5mm miniplug is fully inserted into the Samson wireless beltpack transmitter.
- 送信機電力: Verify that the wireless beltpack transmitter is powered on and functioning correctly.
- レシーバー接続: Confirm the wireless receiver is properly connected and receiving a signal from the transmitter.
- 互換性: Remember the LM5 is designed for Samson wireless beltpack transmitters only.
5.2 Poor Sound Quality / Excessive Noise
- マイクの配置: Adjust the microphone's position to be closer to the sound source and away from clothing or jewelry that might cause rubbing noise.
- ウインドスクリーン: Ensure the foam windscreen is properly installed to reduce plosives and wind noise. Replace if damaged.
- ゲインレベル: Check and adjust the gain settings on your transmitter and receiver to avoid distortion or low signal.
- 干渉： If using a wireless system, check for potential wireless interference and adjust channels if necessary (refer to your wireless system's manual).
5.3 Clip Issues
If the microphone clip becomes loose or breaks, it may need to be replaced. Contact Samson support for replacement parts.
6. 仕様
| 特徴 | 仕様 |
|---|---|
| ブランド | サムソン |
| モデル名 | SWAS5LM5 |
| 接続技術 | Wireless (via compatible transmitter) |
| コネクタタイプ | 3.5mmミニプラグ |
| 特集 | クリップ付き |
| 対応デバイス | Samson Wireless Beltpack Transmitters |
| 色 | 黒 |
| 極性パターン | 全方向 |
| マイクフォームファクター | Lavalier (microphone only) |
| 電源 | Corded Electric (via transmitter) |
| 信号対ノイズ比 | 78デシベル |
| エンクロージャ材質 | ステンレス鋼 |
| アイテム重量 | 24.77グラム |
| アイテムの寸法 | 51.57 x 0.2 x 0.2インチ |
| メーカー | サムソンテクノロジーズ |
7. 保証とサポート
7.1 保証情報
The Samson LM5 Lavalier Microphone is covered by a 1年間の部品および作業保証 ご購入日から1年間有効です。本保証は、通常の使用状況における材料および製造上の欠陥を対象としています。保証請求の際は、購入証明書を保管してください。
7.2 カスタマーサポート
For technical assistance, troubleshooting, or warranty service, please visit the official Samson Technologies website or contact their customer support department. Contact information can typically be found on the Samson website or in the documentation provided with your wireless beltpack transmitter.
