Prepac White Wall Mounted Desk Hutch

1.製品オーバーview

The Prepac White Wall Mounted Desk Hutch (Model WHD-1348) is a versatile storage solution designed to maximize space in various environments such as home offices, dorm rooms, or bathrooms. This unit functions as both a desktop shelf and a wall-mounted organizer, featuring a durable construction from CARB-compliant laminated composite woods with a clean white laminate finish. It includes four adjustable shelves, providing flexible storage for books, binders, decorative items, and other necessities.

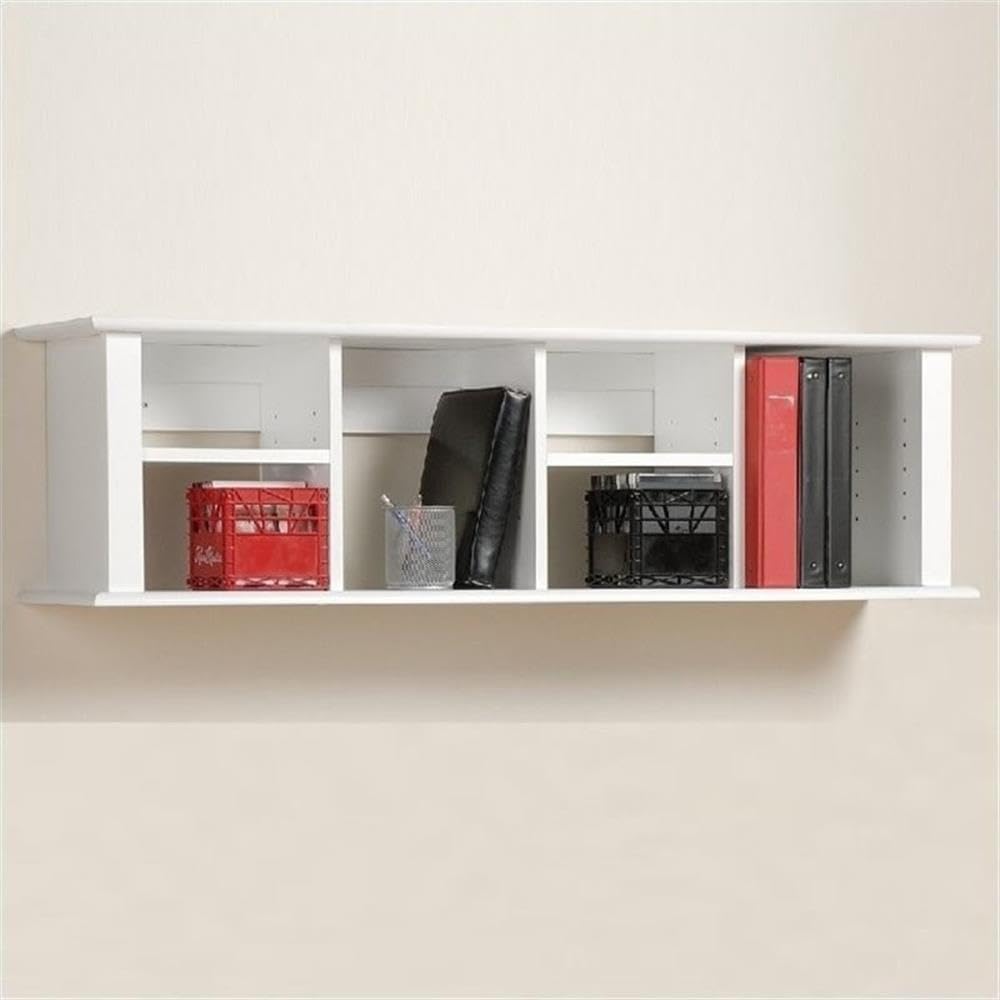

Image 1.1: The Prepac White Wall Mounted Desk Hutch, showcasinさまざまなアイテムを収納できる収納力。

2. コンポーネントとハードウェア

Your Prepac Desk Hutch comes with all necessary hardware for assembly. Familiarize yourself with the different types of connectors and fasteners provided to ensure a smooth assembly process.

2.1. Common Hardware Types

• Cam and Connector System: Used for strong, concealed connections between panels.
• Dowel Pins: Used to align and secure decorative moldings.
• 木ネジ: For securing the wall stabilizer to wall studs.

3. 組み立て手順

The desk hutch ships ready to assemble. Follow the detailed instruction booklet included in your package. Ensure all parts are present before beginning assembly.

3.1. 一般的な組み立て手順

1. Identify all components and hardware as per the instruction manual.
2. Insert connector bolts into designated holes in the panels.
3. Insert cams into the corresponding holes, ensuring the arrow points towards the connector bolt.
4. Connect panels by aligning the connector bolts with the cams and tightening the cams clockwise until locked.
5. Attach decorative moldings using dowel pins, applying firm, even pressure.
6. Install adjustable shelves into desired positions using shelf pins.

4. 壁への取り付け手順

This desk hutch utilizes a two-piece hanging rail system for secure wall mounting. It is crucial to install the unit into wooden wall studs for stability and safety. Do NOT use drywall anchors.

4.1. Required Tools for Installation

• スタッドファインダー
• Power Screwdriver or Drill
• 3/32インチドリルビット
• 鉛筆
• 巻尺
• レベル
• Six 3.5 inch Wood Screws (provided)

4.2. インストール手順

1. 取り付け高さを決定する: Measure 24 to 28 inches from the floor to the desired top edge of the hutch. Mark this height on the wall.
2. 壁のスタッドの位置を特定します。 Use a stud finder to locate the center of at least three wooden wall studs along the marked line. Mark these locations.
3. Install Wall Stabilizer: Align the top edge of the wall stabilizer (the piece with the notch facing the wall) with the marked line on the wall. Ensure it is level and centered across the marked studs.
4. Pre-drill and Secure Wall Stabilizer: Using the 3/32 inch drill bit, pre-drill through the wall stabilizer and into the center of each wooden stud. Then, secure the wall stabilizer to the wall using the 3.5 inch wood screws, ensuring the screw heads are flush with the stabilizer.
5. Mount Desk Hutch: Carefully lift the assembled desk hutch and lower its rear product stabilizer (the piece with the notch facing forward) onto the installed wall stabilizer. Ensure the cleats interlock tightly.
6. 最終確保: Once the hutch is securely seated, drill through the rear product stabilizer into the studs directly above the screws on the wall stabilizer. Use the remaining 3.5 inch wood screws to firmly attach the hutch to the wall. Adjust screws if necessary to achieve a flush fit, especially on uneven wall surfaces.

5.使用法と操作

The Prepac Desk Hutch is designed for versatile storage. The four adjustable shelves allow you to customize the storage compartments to fit various items, from books and binders to decorative pieces. Ensure items are distributed evenly to maintain balance and stability.

5.1. 調節可能な棚

To adjust a shelf, remove any items, lift the shelf, and reposition the shelf pins in the desired holes. Gently lower the shelf onto the pins, ensuring it is level and secure.

5.2. 重量制限

The maximum weight limit for this unit is 50 pounds. Avoid overloading the shelves to prevent damage or instability.

Image 5.1: Dimensional diagram of the desk hutch, illustrating depth, width, and height for planning usage.

6. お手入れとメンテナンス

To maintain the appearance and longevity of your Prepac Desk Hutch, follow these simple care instructions:

• 柔らかい布で表面を拭いてください。amp 布。 研磨剤入りクリーナーは避けてください。
• Promptly clean up spills to prevent staining or damage to the laminate finish.
• すべての留め具と接続部がしっかりと締まっているか定期的に点検してください。必要に応じて締め直してください。
• Avoid exposing the unit to excessive moisture or direct sunlight for prolonged periods.

7。 トラブルシューティング

組み立て中または使用中に問題が発生した場合は、次の一般的な解決策を検討してください。

• 緩い接続: Ensure all cam and connector systems are fully tightened clockwise.
• Uneven Fit during Wall Mounting: If the rear product stabilizer does not fit flush with the wall stabilizer, slightly loosen and then re-tighten the wall stabilizer screws to allow for minor adjustments.
• 不足している部品: Refer to the parts list in your instruction booklet. Contact Prepac customer support if any parts are missing.

8. 仕様

9. 保証とサポート

Your Prepac White Wall Mounted Desk Hutch is backed by a 5-year manufacturer's limited warranty on parts. For any questions, missing parts, or support needs, please refer to the contact information provided in your product packaging or visit the official Prepac webサイト。
